Tp-Link XX530v AX3000 WiFi 6 Dual Band GPON Router

The TP-Link XX530v AX3000 Dual-Band Wi-Fi 6 GPON Router is a next-generation, high performance networking device designed to provide ultra-fast, reliable internet connectivity for both residential and commercial environments. It uses Wi-Fi 6 (802.11ax) technology to deliver combined wireless speeds up to AX3000 across both 2.4 GHz and 5 GHz bands, enabling high-speed internet suitable for 4K/8K streaming, online gaming, and heavy downloading without lag or slowdown. Wi-Fi 6 functions properly by using by using advanced technologies like OFDMA and MU-MIMO, allowing dozens of devices to operate simultaneously on the network with lower latency and better stability compared to older Wi-Fi standards.  It originate with four high- power performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout our home.

The XX530v especially powerful for  its GPON (Gigabit Passive Optical Network) compatibility,which connects directly to fiber-optic broadband without requiring a separate modem. This means we can plug our fiber line straight into the router’s GPON port and get ultra-fast broadband performance (with downstream speeds up to ~2.5 Gbps and upstream up to ~1.24 Gbps), ideal for future-proof high-speed internet plans. Apart from wireless connectivity Gigabit wired ports, USB media sharing, VoIP support for internet calling, and enhanced security features like WPA3 encryption and parental controls to manage users or devices securely. It creates a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.Its wireless connection of  1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access. Easy setup and remote management via the Aginet app or cloud protocols make this device a versatile and convenient networking hub for modern homes and small offices.

Key Features

Ultra-Fast Dual-Band Wi-Fi 6 Performance:
The XX530v supports the latest Wi-Fi 6 (802.11ax) technology, delivering combined wireless speeds up to AX3000 — roughly 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. This means significantly faster downloads, smoother 4K/8K streaming, and reduced lag during online gaming or large file transfers compared to previous Wi-Fi generations. Wi-Fi 6 also improves capacity and efficiency, handling more concurrent devices without congestion, thanks to advanced features like 1024-QAM, 160 MHz channels, OFDMA, and MU-MIMO.

GPON Fiber Integration for High-Speed Internet:
Unlike typical routers that require a separate modem, this model includes a GPON (Gigabit Passive Optical Network) port that we plug directly into fiber broadband lines. It supports fiber speeds up to approximately 2.488 Gbps downstream and 1.244 Gbps upstream, providing a true fiber internet experience without needing extra hardware. This integration simplifies setup and lowers latency for bandwidth-intensive applications like cloud gaming, remote work, and streaming.

Extended Coverage and Connectivity Technologies:
To ensure strong Wi-Fi coverage throughout your home, the XX530v uses multiple high-performance antennas combined with beamforming technology to focus signals toward connected devices rather than radiating blindly. Additionally, it supports EasyMesh compatibility so we can connect other mesh-capable APs or routers for seamless whole-home coverage with one Wi-Fi name and uninterrupted roaming.

Versatile Wired & Backup Connectivity Options:

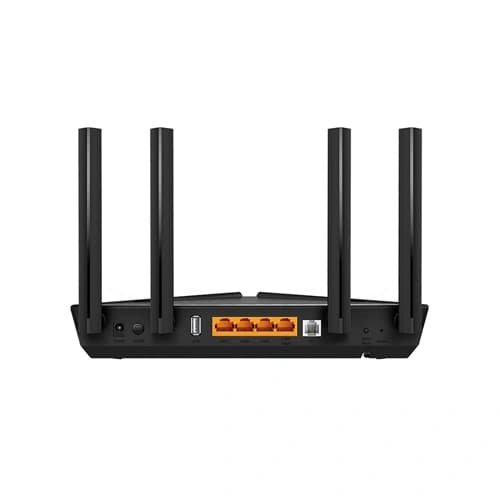

Apart from fiber, this router offers flexible connectivity with a Gigabit WAN/LAN port and three Gigabit LAN ports, making it easy to connect wired devices like desktops, smart TVs, or NAS systems. It also features a USB port that allows connection of 3G/4G dongles as an internet backup source — ideal for staying online even if your primary connection drops.

Built-In VoIP Capabilities:
The XX530v includes VoIP support, letting you connect an analog phone and use internet-based calling with features like caller ID, call waiting, and call forwarding. This can replace traditional landline services and enhance communication options, especially for home offices or small businesses.

Robust Security & Network Controls:
Security is strengthened with WPA3 encryption, which offers safer, more modern protection against unauthorized access and brute-force attacks. Multi-SSID support lets you create separate networks for guests and main users, while parental controls help manage usage times and filter inappropriate content. These features help keep your network safe and tailored to different users’ needs

Easy Setup & Remote Management:
Setting up and managing the router is straightforward using the Aginet app or web interface. The router also supports remote configuration and monitoring through cloud-based management protocols like TR-069, TR-369 (TAUC), and OMCI — making it easier for users and service providers to keep the network updated, secure, and optimized without needing to be physically present.
