| Specifications |
Details |
| Model Name |
RT-AX53U |
| Network Standard |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6 |
| AX technology |
Yes |
| Antenna |
External antennas*4 |
| Transmit/Receive |
2.4GHz 2x2, 5GHz 2x2 |
| Processor |
Dual-core |
| Memory |
128 MB Flash, 256 MB RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80 MHz bandwidth |
| Operating Frequency |
2.4GHz / 5 GHz |

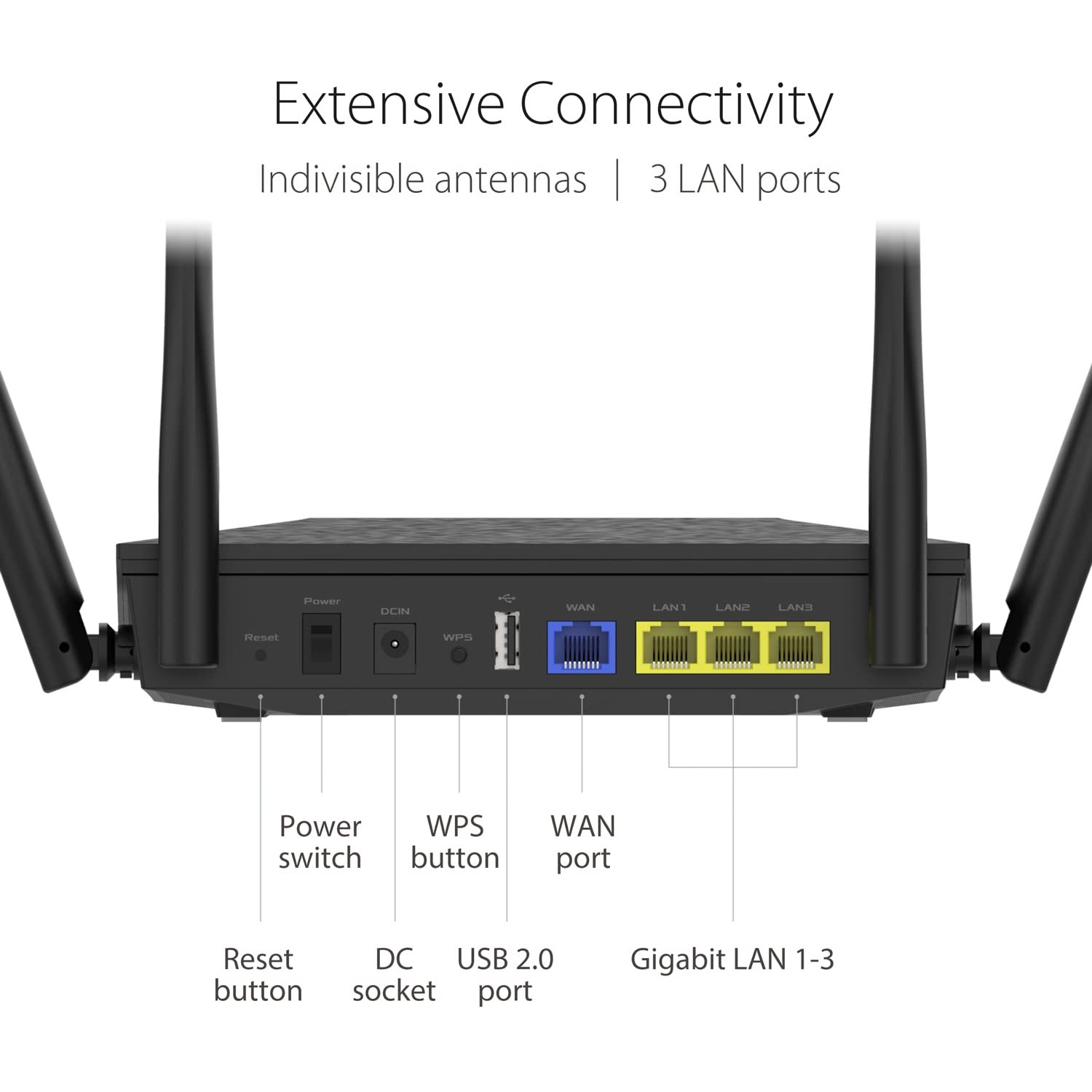

| Ports |
RJ45 for Gigabit BaseT for WAN x 1, RJ45 for Gigabit BaseT for LAN x 3, USB Port x 1 |
| Button |
WPS Button, Reset Button, Power Switch |
| LED Indicator |
Power x 1, 2.4G x 1, 5G x 1, LAN x 3, WAN x 1, USB x 1 |
| Power Supply |
AC Input: 110V~240V(50~60Hz), DC Output: 12 V with max. 1.5A current |
| Package content |
RT-AX53U, RJ45 x 1, Adapter x 1, QSG x 1, Warranty Card x 1 |
| Product Weight (g) |
346g |
| AiMesh |
AiMesh: Yes, Primary AiMesh router: Yes, AiMesh node: Yes |
| Router APP |
ASUS Router APP: Yes |
| Game |
Game Boost/acceleration: No |
| Alexa |
Support Alexa skill: Yes |
| IFTTT |
Support IFTTT: No |
| AiProtection |
AiProtection: AiProtection Classic, Malicious site blocking: Yes, Infected Device Prevention and Blocking: Yes |
| Parental Control |
Parental Control: Yes, Parental Control Customized Internet schedule: Yes |
| Traffic Control |
Adaptive QoS: No, Bandwidth limiter: Yes, Traditional QoS: Yes, Traffic Monitor: Yes, Real-time traffic monitor: Yes, Wired Traffic Monitor: Yes, Wireless Traffic Monitor: Yes, Website history: No |
| Wireless |
IPv6: Yes, MU-MIMO: Yes, Wi-Fi Encryption: Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal, UTF-8 SSID: Yes, Guest Network: Yes, WPS: Yes, Wi-Fi MAC address filter: Yes, Wireless scheduler: Yes, Airtime fairness: Yes, RADIUS Server: Yes, Universal beamforming: Yes, Explicit beamforming: Yes, IGMP snooping: Yes |
| WAN |
Internet connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN: Yes, WAN Aggregation: No, 3G/4G LTE dongle: Yes, Port triggering: Yes, DMZ: Yes, DDNS: Yes, Let's Encrypt: Yes |
| LAN |
DHCP Server: Yes, IPTV: Yes, LAN Link Aggregation: No, Manually assign IP address: Yes |
| VPN |
VPN Client L2PT: Yes, VPN Client OVPN: Yes, VPN Client PPTP: Yes, VPN Server IPSec: Yes, VPN Server OVPN: Yes, VPN Server PPTP: Yes, VPN Fusion: No |
| USB application |
3G/4G LTE dongle: Yes, HDD hibernation: Yes, Safely Remove disk: Yes, AiCloud: No, Download master: Yes, AiDisk: Yes, Media Server: Yes, Time Machine: Yes, Samba Server: Yes, FTP Server: Yes, Shared Folder privileges: Yes |
| Administration |
Operating mode: Access Point, Media Bridge, Repeater, Router, Operating system: ASUSWRT, Free OS upgrade: Yes, Firewall: Yes, Wake on LAN (WOL): Yes, SSH: Yes, Configuration backup and restore: Yes, Diagnosis tools: Yes, Feedback system: Yes, System log: Yes |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
