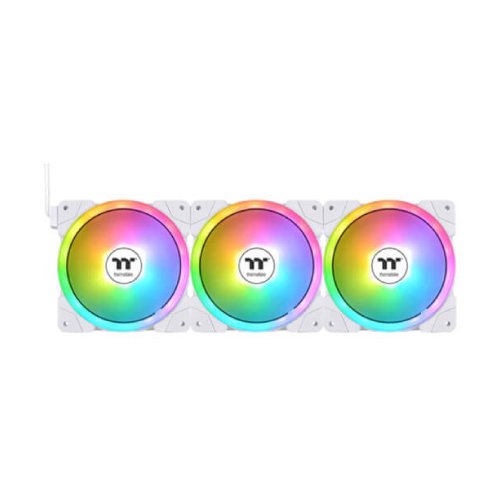

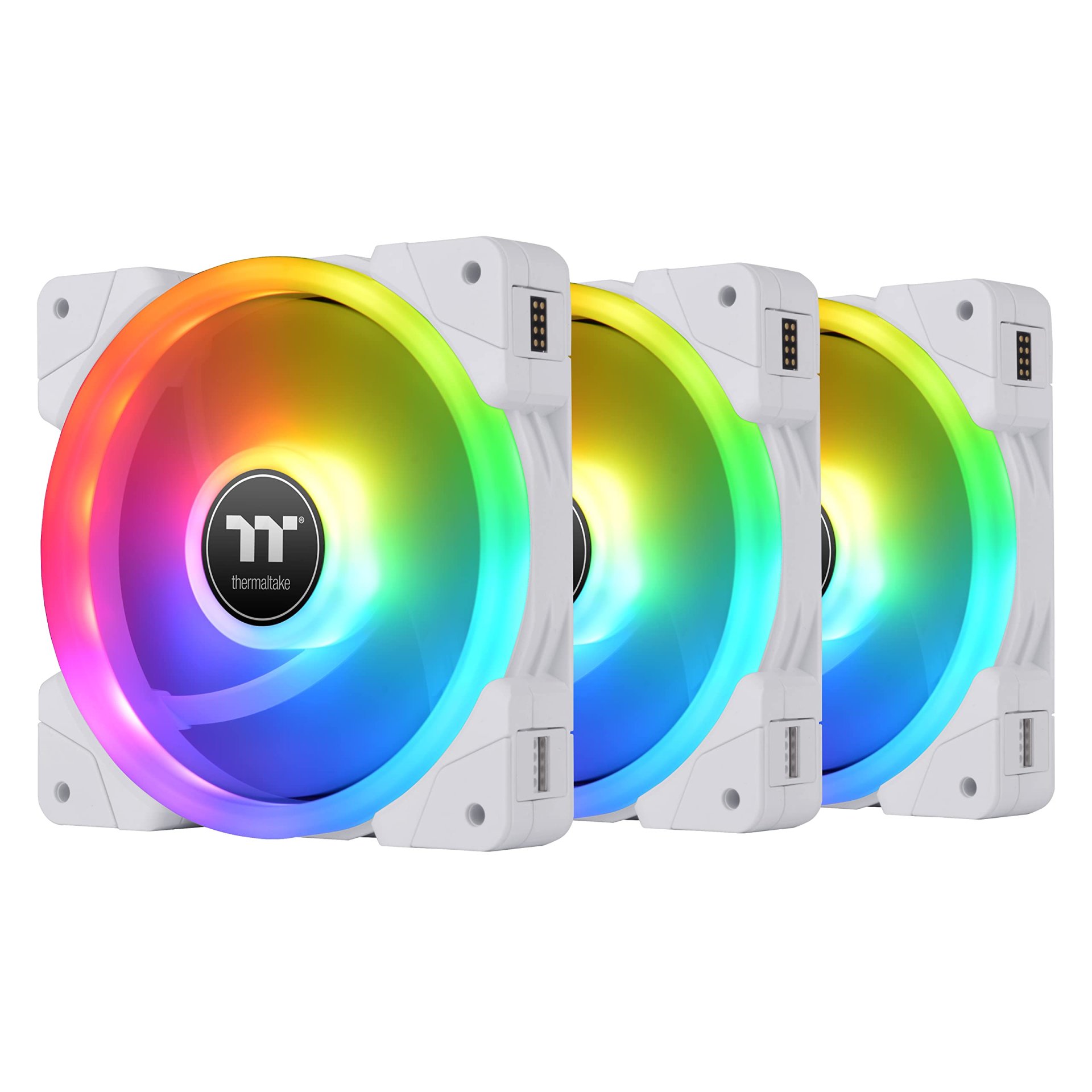

The Thermaltake Swafan EX12 ARGB Sync White cabinet fan, available in a triple pack, introduces a magnetic force design to ARGB fans while retaining the iconic swappable fan blade design. Let's explore its features:

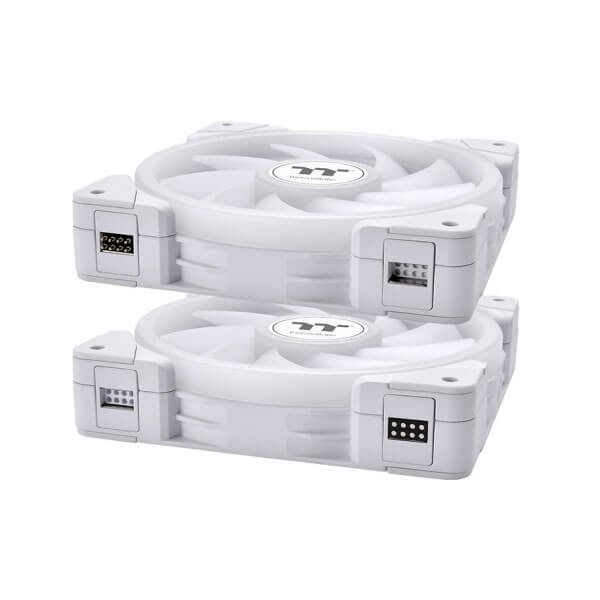

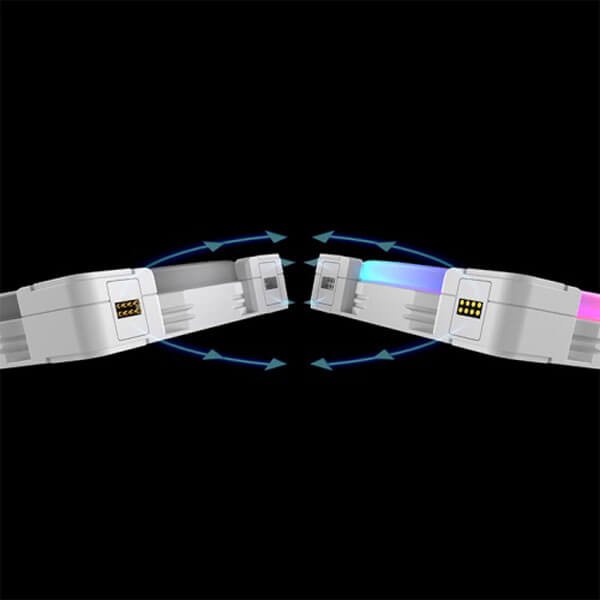

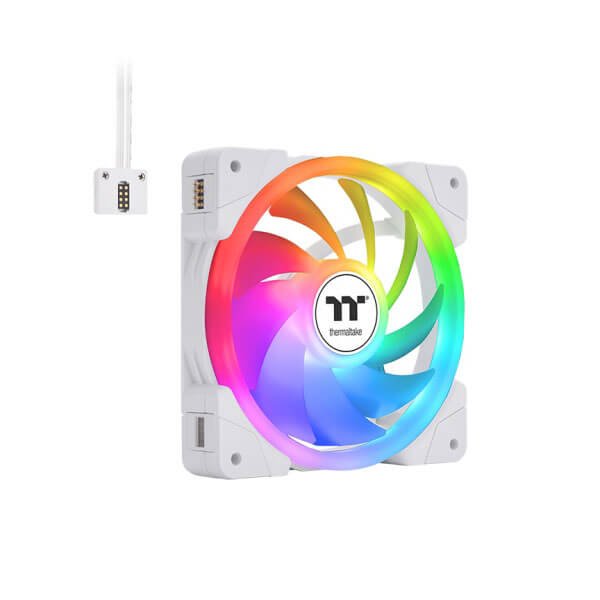

Quick Connect with Magnetic Force Design: This fan utilizes a magnetic force design ARGB version, allowing for the simultaneous connection of the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector. By aligning the fans side by side, the magnet connectors draw the fan frames together, simplifying the assembly process and reducing installation time. This user-friendly design enhances convenience and adds a fun element to PC building.

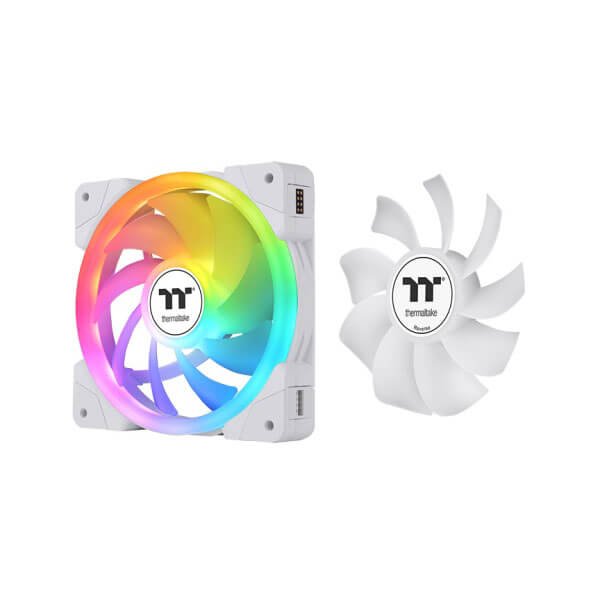

Pop and Insert, it is that easy: The fan blades of the Swafan EX12 ARGB Sync White can be easily popped out and inserted, facilitating maintenance and customization. Users can even rinse the fan blades with water, ensuring cleanliness, provided they are thoroughly dried and lubricated with the included bearing lubricant if necessary.

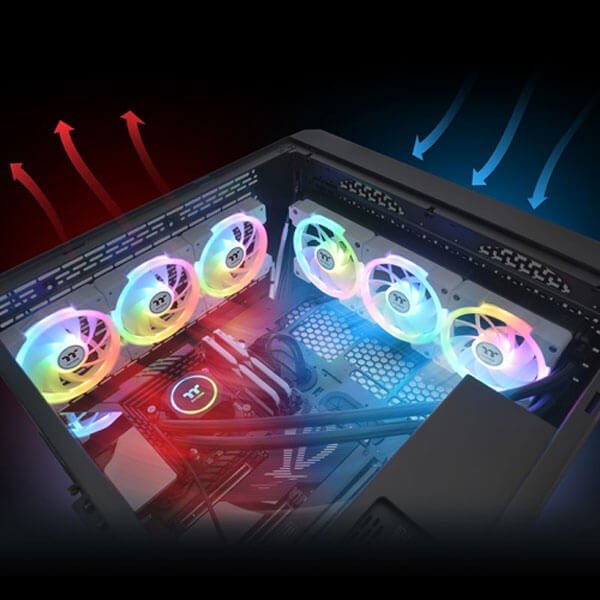

Aesthetics and Airflow Direction: The Swafan EX12 ARGB Sync White offers both aesthetic appeal and practical airflow direction. Users no longer need to sacrifice one for the other, as this fan can effectively accomplish both tasks.
Great Lighting Effects with 16.8M Colors: With two independent LED rings featuring a total of 20 LEDs (6 in the inner ring and 14 in the outer ring), users can enjoy a wide range of lighting effects and explore different build themes using 5V motherboard sync lighting software.
Sync with Motherboard RGB Software: The fan is designed to synchronize with popular motherboard RGB software such as ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing users to control the lights directly from the motherboard software without the need for additional controllers or software.
In summary, the Thermaltake Swafan EX12 ARGB Sync White cabinet fan offers a combination of innovative design, customizable lighting, ease of installation, and compatibility with motherboard RGB software, making it an ideal choice for enhancing both the aesthetics and performance of PC builds.
Thermaltake SWAFAN EX12 Specifications
| Specification | Details |
|---|---|
| Model | SWAFAN EX12 |
| P/N | CL-F169-PL12SW-A |
| Fan Dimension | 120 x 120 x 25 mm |
| Interface | 2510-4 PIN PWM, 5V ARGB header-3PIN |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12 V - 0.27 A , 5 V – 0.72 A (one fan) |
| Power Input | 12 V – 3.24 W , 5 V – 3.6 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max. Air Pressure | Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) |
| Max Air Flow | Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) |
| Noise Level | Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Included Items | Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
