Motherboard Compatibility: The case supports a wide range of motherboard sizes, including E-ATX, ATX, Micro ATX, and Mini ITX. It is specifically designed to accommodate both ASUS and MSI Hidden-Connector motherboards, ensuring compatibility with popular models like the ROG MAXIMUS Z790 HERO BTF, ASUS TUF GAMING Z790-BTF WIFI, and MSI Z790 PROJECT ZERO (ATX).
Cooling System: Equipped with two CT140 ARGB Sync PC Cooling Fans in white pre-installed at the front and one CT140 PC Cooling Fan in white pre-installed at the rear, the case ensures efficient airflow and cooling performance. Additionally, with more than 55% of its panels perforated, it enhances airflow to maintain optimal temperatures for components.
Radiator Support: The Ceres 330 TG ARGB Hydrangea Blue supports up to a 360mm radiator at the front and a 280mm radiator at the top, providing ample cooling options for high-performance setups.
Hidden-Connector Design: Designed for next-generation motherboards, the case features a special design that supports both standard motherboards and hidden-connector motherboards from ASUS and MSI. This design facilitates outstanding cable management by concealing messy cables on the backside, ultimately allowing for greater airflow and improved aesthetics.
Visually Pleasing: The case boasts a visually pleasing aesthetic with its Hydrangea Blue color scheme. Additionally, users can enhance its visual effects by upgrading it with optional LCD Panel Kits or 3.9'' LCD Screen Kits. These kits allow users to monitor real-time information, upload images or GIFs, and interact with cooling components using the TT RGB Plus 2.0 software.
Overall, the Thermaltake Ceres 330 TG ARGB Mid Tower Cabinet offers a combination of robust cooling capabilities, versatile compatibility, and visually appealing design elements, making it an excellent choice for users looking to build a high-performance and visually stunning PC setup.

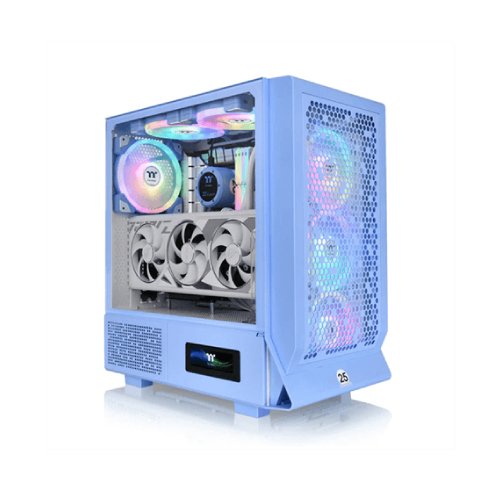

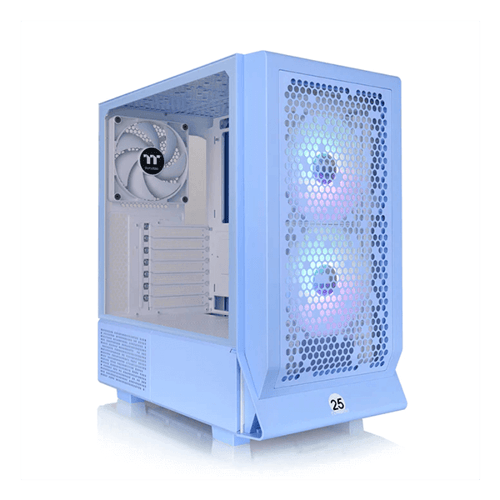

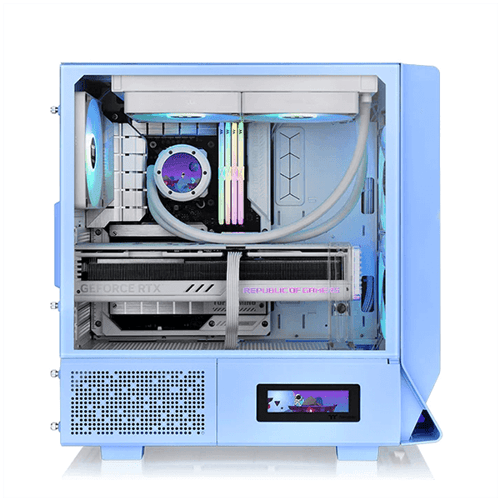

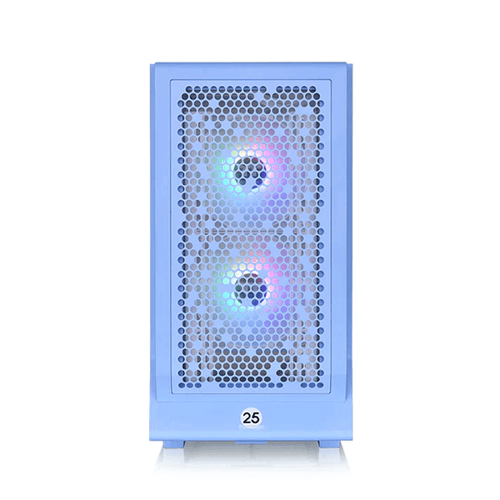

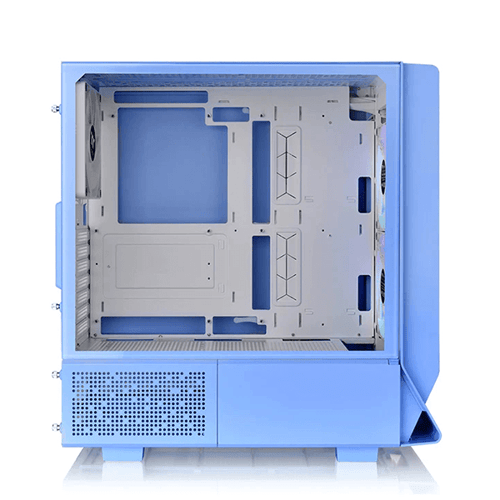

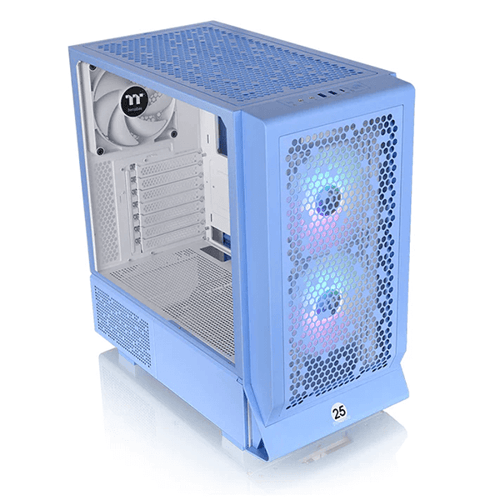

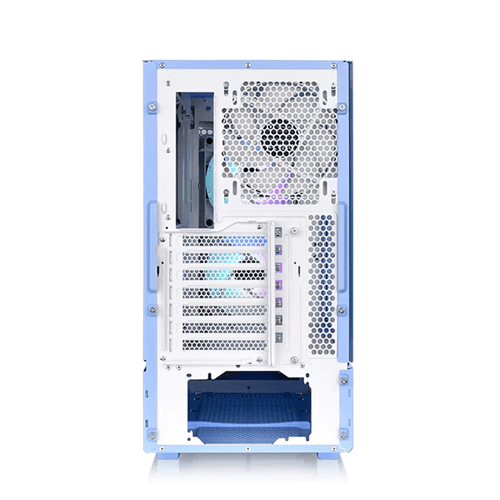

Ceres 330 TG ARGB Hydrangea Blue Mid Tower Chassis Specifications
| Specification | Details |
|---|---|
| Model | Ceres 330 TG ARGB Hydrangea Blue Mid Tower Chassis |
| P/N | CA-1Y2-00MFWN-00 |
| Series | Ceres |
| Case Type | Mid Tower |
| Dimensions | 475 x 245 x 463 mm (18.7 x 9.65 x 18.23 inch) |
| Weight | 7.8 kg / 17.2 lbs. |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Hydrangea Blue |
| Material | SPCC |
| Cooling System | Front (intake): 140 x 140 x 25 mm CT140 ARGB white fan (1500rpm, 30.5 dBA) x 2 Rear (exhaust): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1 |
| Drive Bays | 1 x 3.5”, 2 x 2.5’’ or 3 x 2.5” |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler max height: 185mm VGA max length: 340mm (with radiator), 370mm (without radiator) PSU max length: 220mm |
| Warranty | 3 Years |
| Note | *** Image use as reference only *** Features, Price, Specifications are subject to change without notice. |
Cabinet
| Brand | THERMALTAKE |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | E-ATX |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| LED | ARGB |
| Fan Size | 120 MM |
| Fan Size | 140 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
| Shipping Cost |
|
| Shop Location |
