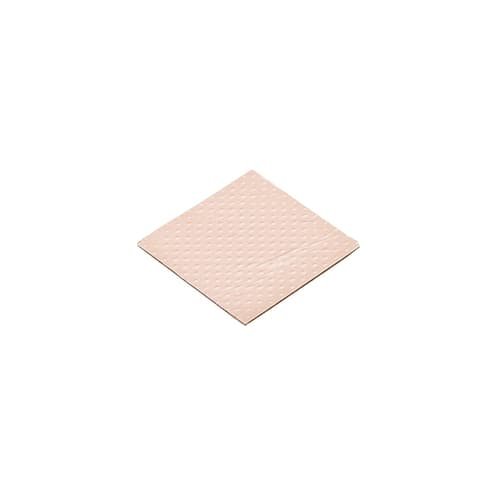

Thermal Grizzly Minus Pad 8 Thermal Pad (30 X 30 X 0.5mm)

The Thermal Grizzly Minus Pad 8 (30 × 30 × 0.5 mm) is a high-performance thermal pad designed to efficiently transfer heat from electronic components to heatsinks or cooling solutions. These pads feature a highly elastic and flexible structure that allows them to conform effortlessly to uneven surfaces, filling microscopic air gaps between components and heatsinks. Even tiny surface irregularities can hold pockets of air, which reduces heat transfer. Minus Pads are highly compressible, allowing them to conform closely to surfaces and remove these gaps for improved heat dissipation. Their strong heat-transfer performance makes them well suited for GPUs, VRMs, RAM, M.2 SSDs, chipsets, and other space-constrained electronic components. Because they are available in multiple thicknesses and sizes, users can select the exact specification needed to maintain correct mounting pressure and spacing.
Constructed from a ceramic silicon-based compound enhanced with nano aluminum oxide particles, the pads deliver stable and consistent heat transfer over long periods without drying out or degrading like some thermal pastes. They are electrically insulating, which means they do not conduct electricity—making them safe to use around sensitive circuitry. Their soft, compressible nature allows for easy handling and installation; only light pressure is required to position them securely between surfaces. Additionally, the pads are eco-friendly and RoHS-compliant, meaning they meet strict environmental and safety standards by limiting hazardous substances. Overall, the Minus Pad series offers a durable, clean, and reliable solution for both consumer and professional cooling applications.

Key Features

High Thermal Conductivity (8 W/mK)
The Minus Pad 8 facilitates rapid heat transfer from components such as SSDs, GPUs, VRMs, and chipsets to help maintain stable operating temperatures.This helps maintain stable operating temperatures and improves overall system performance.

Optimal Thickness (0.5 mm)
With a precise 0.5 mm thickness, this pad is ideal for tight-clearance applications where exact spacing between the component and heatsink is critical. It ensures proper contact without applying excessive pressure.

Flexible and Highly Compressible Material
The pad features a soft, elastic structure that adapts to uneven surfaces and fills microscopic air gaps. This improves surface contact and maximizes thermal transfer efficiency.

Electrically Non-Conductive
Engineered with safety in mind, Minus Pad 8 uses an electrically non-conductive material to safeguard sensitive hardware. It prevents short circuits when placed near sensitive electronic components, making installation secure and worry-free.

Premium Material Composition
Made from a ceramic silicon-based compound enhanced with nano aluminum oxide, the pad provides consistent and long-lasting thermal performance without drying out or degrading over time.

Easy Installation and Custom Fit
The 30 × 30 mm size can be trimmed to fit various components such as M.2 SSDs or compact VRM modules. Its light tack and flexible structure allow for simple positioning with minimal effort.

Eco-Friendly and RoHS Compliant
The pad meets RoHS environmental standards, ensuring it is free from harmful substances and safe for both users and the environment.
Technical Specification
