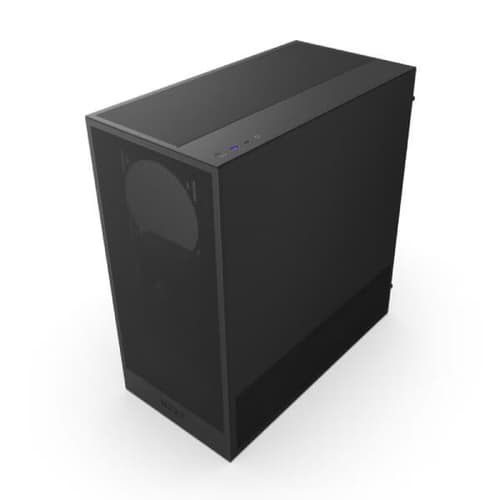

Perforated Front Panel: The cabinet's front panel is perforated, allowing for increased airflow into the case. This design enhances the cooling potential of the system by providing optimal ventilation to the internal components.
Optimized Thermal Performance: With a focus on thermal performance, the H5 Flow is engineered to ensure that the internal components remain cool even during intensive tasks. The perforated front panel contributes to this by facilitating better airflow throughout the case.
Dedicated GPU Cooling: A dedicated fan positioned on the bottom inside panel is angled to cool the GPU specifically. This helps in maintaining lower temperatures for the graphics card, preventing thermal throttling and ensuring smooth performance during gaming or other GPU-intensive tasks.
Intuitive Cable Management: The cabinet features an intuitive cable management system with wide channels, hooks, and straps. This system allows for neat and organized cable routing, which not only improves airflow but also makes the interior of the case look cleaner and more aesthetically pleasing.

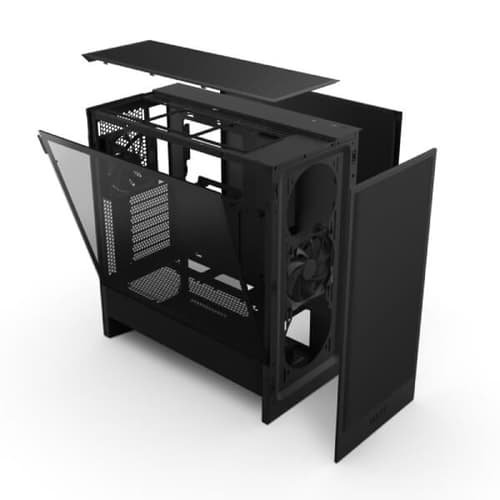

Tool-less Access: The H5 Flow offers tool-less access to both the front and side panels, simplifying the process of accessing the internal components for maintenance or upgrades. This feature enhances user convenience and makes working with the case hassle-free.
Fan and Radiator Support: The front panel supports up to 2 x 140mm fans or a 280mm radiator, providing flexibility for cooling configurations. Similarly, the top panel supports up to 2 x 120mm fans or a 240mm radiator, allowing users to customize their cooling setup according to their needs.
Pre-installed Fans: The cabinet comes with two pre-installed F120Q fans, which contribute to immediate cooling out of the box. These fans ensure that there is already adequate airflow within the case, providing a good starting point for building a high-performance PC.
Case Specifications
| Specification | Value |
|---|---|
| Key Specs | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, EATX (Up to 272mm) |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
| Dimensions | |
| Height | 464mm (With Feet) |
| Width | 227mm |
| Depth | 446mm |
| Weight | 7.01 kg |
| Drive Bays | |
| 2.5" | 1 + 1 |
| 3.5" | 1 |
| Fan Support | |
| Front | 2 x 120mm / 2 x 140mm |
| Top | 2 x 120mm |
| Rear | 1 x F Series Quiet 120mm (Case Version) included |
| Bottom | 1 x F Series Quiet 120mm (Case Version) included |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | Up to 165mm |
| Max GPU Clearance | Up to 365mm |
| Front Radiator Clearance | 45mm |
| Cable Management | Up to 23mm |
| Radiator Support | |
| Front | Up to 280mm |
| Top | Up to 240mm |
| Rear | Up to 120mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240 RPM |
| Airflow | 62.18 CFM |
| Static | 1.05 mm - H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Case
| Brand | NZXT |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Material | STAINLESS STEEL |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| LED | ARGB |
| Fan Size | 120 MM |
| Fan Size | 140 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
