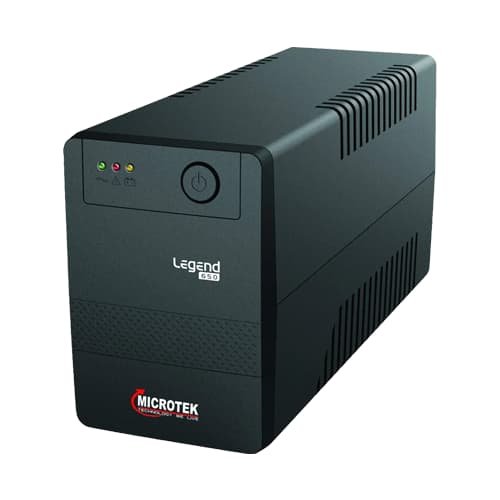

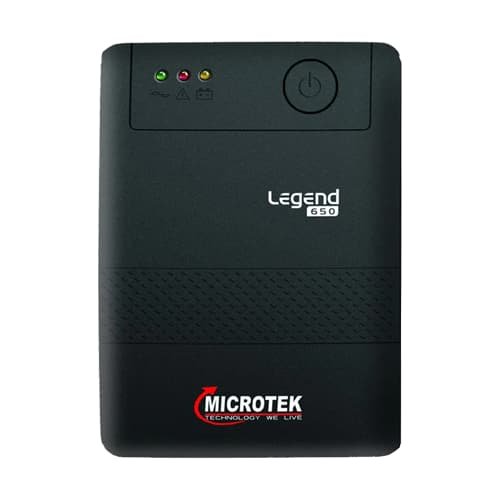

The Microtek LEGEND 650 UPS (650VA / 360W) is a dependable backup power device developed to support computers and essential electronic equipment during unexpected power failures. It ensures continuous operation when electricity is interrupted and helps protect systems from electrical disturbances caused by events such as lightning, thunderstorms, or unstable power supply. By maintaining a steady flow of electricity, the UPS helps prevent data loss and sudden system shutdowns.
Designed with a wide input voltage tolerance of 140V to 300V AC, this UPS can operate smoothly even during severe voltage fluctuations without frequently switching to battery mode. It delivers a regulated 230V output, allowing multiple computer systems to remain protected at the same time. With up to 30 minutes of backup time, automatic restart functionality, and Boost & Buck AVR technology, the device ensures stable performance, safe voltage control, and uninterrupted workflow during power disruptions.
Key Features
Advanced microprocessor-based Line Interactive UPS
Ensures fast response and smooth power management for safe and stable device operation.
Boost & Buck AVR Technology
Automatically corrects high and low voltage levels, keeping connected devices protected at all times.
Comprehensive protection system
Guards against overload, overcharging, and deep discharge, helping extend battery and device lifespan.
Wide operating voltage range (140V–300V AC)
Continues functioning without switching to battery during extreme voltage variations.
Automatic restart on power recovery
Restores power automatically when mains supply returns, without requiring user intervention.
Generator compatible
Works seamlessly with generators, making it suitable for locations with frequent power outages.
Extended battery life
Uses intelligent charging technology to enhance battery durability and long-term reliability.
Off-mode charging support
Allows the battery to charge even when the UPS is turned off but still connected to the main power supply.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | UPS LEGEND 650 |
| UPS Type | Line Interactive UPS with AVR |
| Capacity | 650 VA / 360 W |
| Input Voltage Range | 140 V – 300 V AC |
| Input Frequency | 50 Hz ± 10% |
| Output Voltage (Battery Mode) | 230 V AC (Nominal) |
| Output Frequency (Battery Mode) | 50 Hz ± 1 Hz |
| Output Waveform | Modified Sine Wave |
| Transfer Time | Typical 4 – 8 ms |
| Battery Type | SMF (Sealed Maintenance Free) |
| Battery Rating | 12 V / 7 AH × 1 |
| Battery Recharge Time | Approximately 6 hours to reach 90% |
| Operating Temperature | 0 °C – 40 °C |
| Relative Humidity | 0 – 90% (Non-condensing) |
| Noise Level | Less than 40 dB |
| Dimensions (L × W × H) | 281 × 100 × 143 mm |
| Weight | Net ~4.16 kg, Gross ~4.46 kg |
| Special Features |
|
| Warranty* |
|
