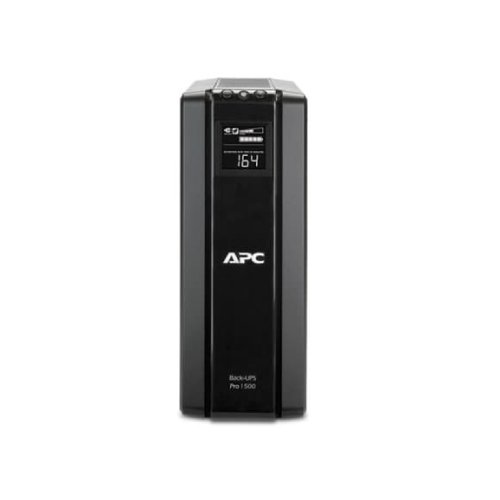

The APC 1.5 kVA 230V UPS is designed to deliver dependable backup power and electrical protection for computers, networking equipment, and other sensitive electronic devices. With a rated capacity of 1.5 kVA, the system provides adequate runtime during power interruptions, allowing users to safely continue work or shut down equipment in an orderly manner. This reduces the risk of data corruption and protects hardware from sudden power loss.
The UPS supplies a stable 230-volt output and is equipped with multiple protection technologies to manage inconsistent power conditions. Automatic Voltage Regulation stabilizes fluctuating input voltage without frequent battery use, while built-in surge suppression guards connected equipment against electrical spikes. Suitable for homes, offices, and small business environments, this UPS ensures reliable operation and safeguards valuable electronic assets.
Key Features
Configurable Voltage Sensitivity and Transfer Levels
The UPS allows adjustment of voltage tolerance and transfer points, enabling optimized performance based on local power conditions and fluctuation frequency.
Battery Backup with Replaceable Batteries
Provides continuous power during outages and supports tool-free battery replacement, ensuring minimal downtime and easy maintenance.
Automatic Self-Testing and Alerts
Performs routine battery diagnostics and notifies users of potential battery issues in advance to prevent unexpected failures.
Surge and Data-Line Protection
Shields connected devices from voltage spikes and protects communication lines from surge-related damage.
Automatic Voltage Regulation (Boost & Trim)
Corrects both low and high input voltage levels without switching to battery operation, preserving battery capacity and improving efficiency.
Cold Start and Battery-Protected Outlets
Enables the UPS to operate on battery power alone during complete outages and prioritizes power delivery to critical equipment.
Energy-Saving Green Mode
Reduces power consumption by disabling output to inactive or non-essential devices, improving overall energy efficiency.
Audible Alerts and LCD Interface
Provides clear audible warnings and a multifunction LCD display for real-time system status and operating conditions.
USB and Serial Connectivity
Allows connection to a computer for monitoring, configuration, and controlled shutdown through compatible management software.
Enhanced Safety Mechanisms
Includes wiring fault detection, resettable circuit protection, and dedicated surge-only outlets for less critical loads.
Technical Specifications
| Specification | Details |
|---|---|
| Model Category | APC 1.5 kVA Line-Interactive UPS |
| UPS Type | Line-Interactive |
| Rated Capacity | 1.5 kVA / 1500 VA |
| Rated Output Power | Approx. 1000 W (model dependent) |
| Nominal Input Voltage | 230 V AC |
| Input Voltage Range | Approx. 151 – 302 V AC (adjustable) |
| Input Frequency | 50 / 60 Hz ±3 Hz (Auto-sensing) |
| Output Voltage | 230 V AC (configurable: 220 / 230 / 240 V) |
| Output Frequency (Mains Mode) | 50 / 60 Hz ±3 Hz |
| Output Waveform | Pure Sine Wave |
| Transfer Time | Typical ~6 ms, Maximum ~10 ms |
| Output Voltage Distortion | Less than 5% at full load |
| Battery Type | Sealed Maintenance-Free Lead-Acid |
| Typical Recharge Time | Approx. 3 hours to 90% |
| Expected Battery Life | Approx. 3 – 5 years |
| Replacement Battery | RBC7 or equivalent |
| Output Connections | IEC-320 C13 outlets (model dependent) |
| Interface Ports | USB, SmartSlot (optional network card) |
| Display | Multifunction LCD status display |
| Audible Alarms |
|
| Surge Protection | Yes (power & data-line protection) |
| Input Protection | Resettable circuit breaker |
| Cold Start | Supported |
| Energy Saving Mode | Green Mode with power-saving outlets |
| Operating Temperature | 0 – 40 °C |
| Operating Humidity | 0 – 95% RH (non-condensing) |
Ups
| Brand | APC |
| Stock Status | IN STOCK |
| Shipping Cost |
|
| Shop Location |
