Features of the ROG Strix X670E-A Gaming WiFi Motherboard
Unparalleled Storage Capabilities
The ROG Strix X670E-A Gaming WiFi motherboard is engineered to offer superior storage performance, thanks to its advanced PCIe 5.0 technology. It includes two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, which provide exceptionally fast data transfer speeds and accommodate the latest high-speed storage solutions. Users can take full advantage of NVMe and SATA RAID configurations (0/1/10) with AMD’s RAID Xpert2, ensuring both rapid access times and robust data redundancy. The primary x16 expansion slot, reinforced with SafeSlot technology, is designed to securely support heavy graphics cards, while the Q-release button facilitates effortless installation and upgrades.
State-of-the-Art Wireless Technology
The motherboard is equipped with WiFi 6E, leveraging the 6 GHz frequency band to deliver cutting-edge wireless performance. This technology offers remarkable data transfer speeds and enhanced connectivity in environments with high wireless traffic. With support for up to seven 160 MHz channels, the WiFi 6E capability ensures a stable and high-speed connection, making it ideal for online gaming and streaming high-definition content without interruptions.
Advanced Wired Networking
For those who prefer a wired connection, the ROG Strix X670E-A Gaming WiFi motherboard features Intel® 2.5 Gbps Ethernet. This provides a significant speed boost over standard Ethernet connections, achieving speeds that are 2.5 times faster. This high-speed wired networking is perfect for fast file transfers, minimizing latency during online gaming, and ensuring reliable streaming of high-resolution videos.
Striking Design Aesthetics
The motherboard’s design is both functional and visually impressive. Its silver-white finish is complemented by an eye-catching Aura RGB-illuminated grid design. The aesthetic appeal is further enhanced by the parallel strakes and curved text on the VRM, M.2, and PCH heatsinks, reflecting the unique and high-performance-oriented ROG Strix style. This design not only contributes to the overall look of your build but also underscores the motherboard's premium quality.

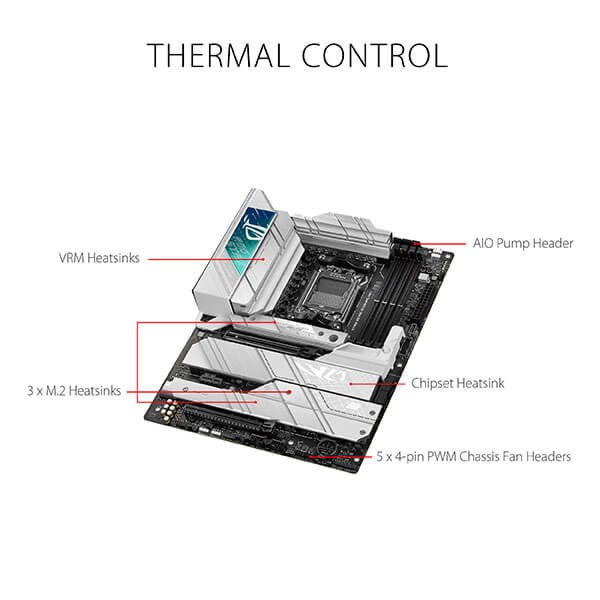

Smart Cooling Solutions
Featuring AI Cooling II, the motherboard offers advanced cooling management. This technology utilizes ASUS’s proprietary algorithms to optimize system temperatures and fan speeds with just one click. It dynamically adjusts cooling based on CPU temperatures to ensure efficient performance while minimizing noise. This results in a quieter, cooler, and more stable gaming environment.
ROG Strix X670E-A Gaming WiFi Specifications
- Operating System: Windows® 11 64-bit
- Form Factor: ATX
- Dimensions: 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
- Warranty: 3 Years
*Please note: Features, prices, and specifications are subject to change without prior notice.*
ROG Strix X670E-A Gaming WiFi Specifications
- Windows® 11 64-bit
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- 3 Years
- *** Features, Price, Specifications are subject to change without notice. Windows® 11 64-bit
ATX Form Factor
3 Years
*** Features, Price, Specifications are subject to change without notice.
| Specification | Details |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics | 1 x DisplayPort 1 x HDMI® port *Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. |

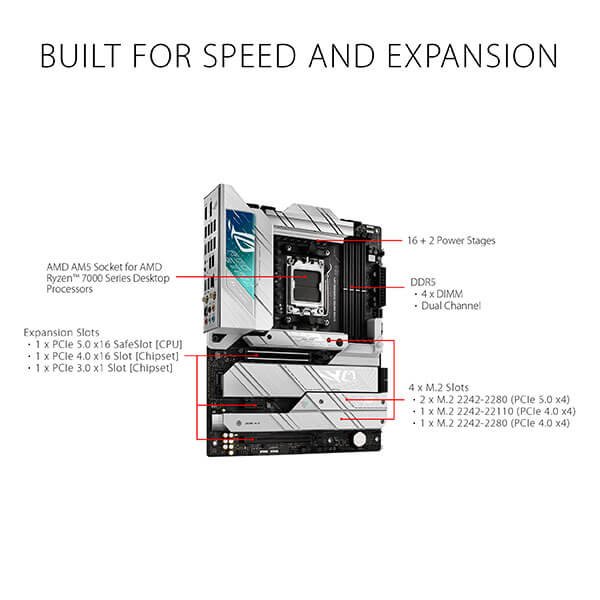

| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0/4.0/3.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

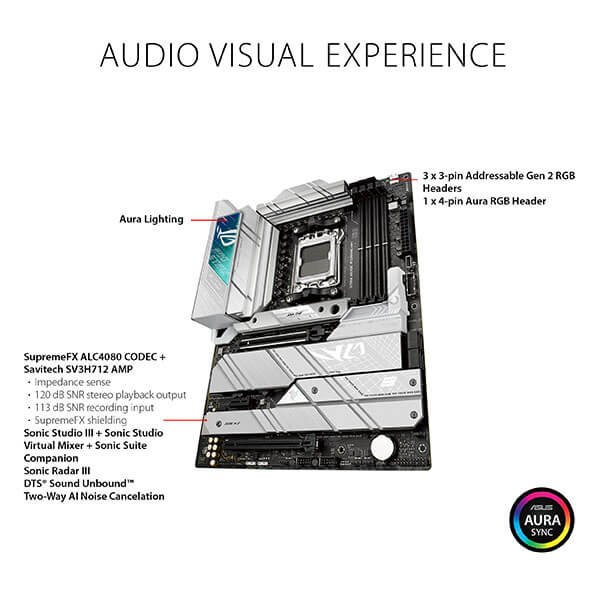

| Audio | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/384 kHz playback" Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Audio cover |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Specification | Details |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - - PCIe Slot Q-Release - - Q-DIMM - - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - - SafeDIMM - AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software - Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation - AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner - MyAsus - WinRAR UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - FlexKey BIOS - 256 Mb Flash ROM, UEFI AMI BIOS Manageability - WOL by PME, PXE Accessories - Cables - 2 x SATA 6Gb/s cables - Additional Cooling Kit - 1 x Thermal pad for M.2 Miscellaneous - 1 x ASUS Wi-Fi moving antennas - 1 x Cable ties pack - 1 x M.2 Q-Latch packages for M.2 backplate - 1 x M.2 Q-Latch package - 1 x ROG key chain - 1 x ROG Strix sticker - 1 x ROG Strix thank you card - 2 x Rubber Packages for M.2 - 1 x Rubber Package for M.2 backplate Documentation - 1 x User guide |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASUS |
| Stock Status | IN STOCK |
| Chipset | X670 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | ATX |
| Platform | AMD |
| Max Memory Support | 128 GB |
| Shipping Cost |
|
| Shop Location |
