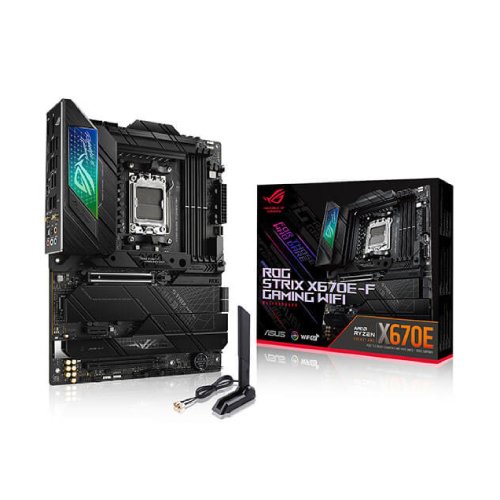

The ROG STRIX X670E-F GAMING WiFi motherboard boasts several features designed to enhance performance and aesthetics:
PCIe 5.0: With two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, the motherboard provides blazing-fast storage options. It supports NVMe and SATA RAID configurations (0/1/10) through AMD RAID Xpert2. Additionally, PCIe 5.0 support extends to the top x16 extension slot, featuring SafeSlot for heavy graphics cards and Q-release for easy upgrades.
AI Overclocking: ASUS AI Overclocking profiles the CPU and cooling system to predict the optimal configuration, pushing the system to its limits. Predicted values can be automatically engaged or serve as a starting point for further experimentation, making tuning faster and smarter.
WiFi 6E: Onboard WiFi 6E technology utilizes the newly available spectrum in the 6 GHz band to offer up to seven 160 MHz channels, delivering ultrafast throughput and improved performance in dense wireless environments.
Intel 2.5G Ethernet: The onboard Intel® 2.5 Gbps Ethernet connection provides a significant boost to wired connectivity, offering speeds 2.5 times faster than standard Ethernet connections. This ensures speedy file transfers, low-latency gaming, and high-resolution video streaming.
Undeniably ROG Strix: The ROG Strix X670E-F boasts a stealthy design that pairs seamlessly with most system hardware. Its jet black PCB and matching metallic heatsinks contribute to its brooding aesthetic, while customizable RGB lighting on the I/O shroud allows users to blend into the shadows or make a statement with their build's visual style.
| Specification | Details |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ ... |
| Graphics | 1 x DisplayPort |
| 1 x HDMI® port | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors |
| 2 x PCIe 5.0 x16 slots (supports x16 modes) | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6E |
| Bluetooth v5.2 | |
| USB | Rear USB (Total 12 ports) |
| Front USB (Total 7 ports) | |

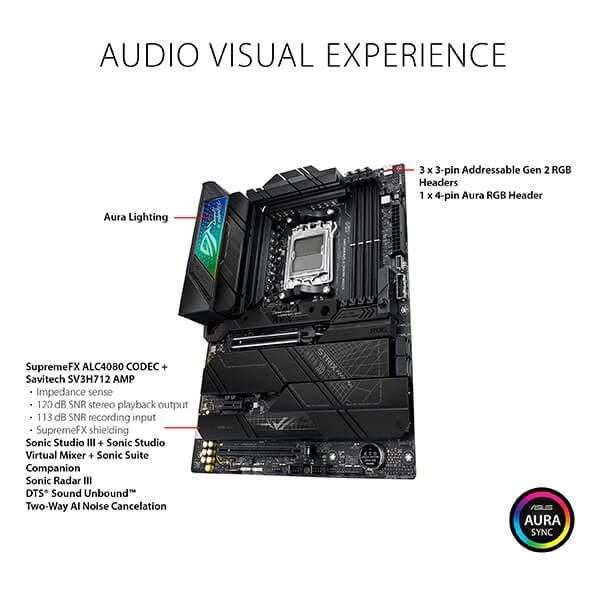

| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |

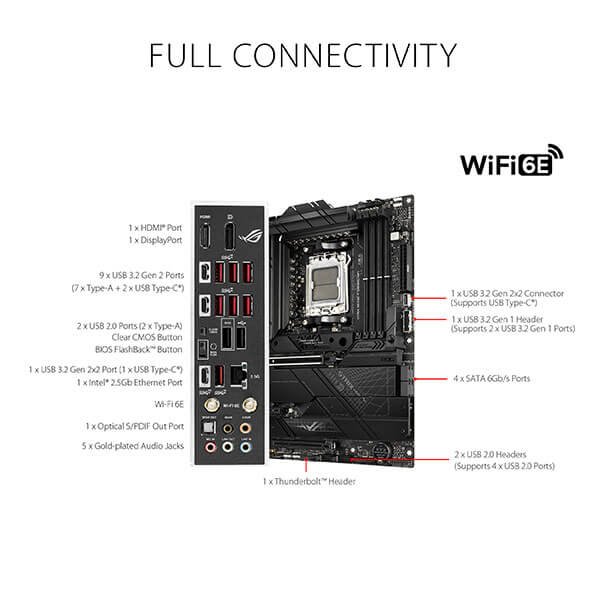

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |

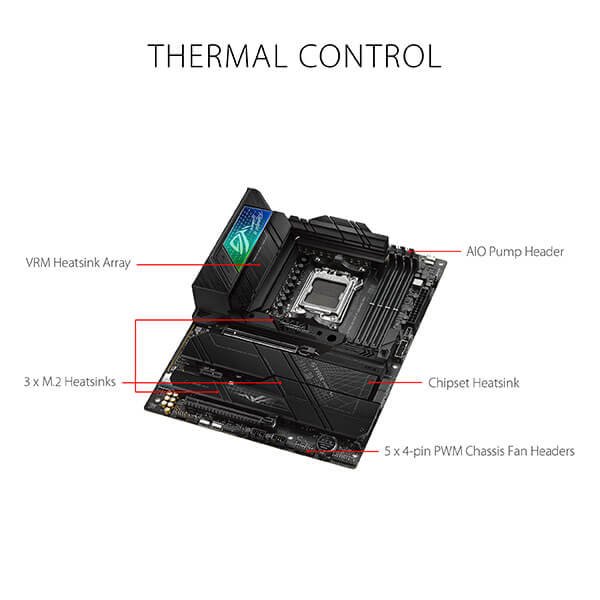

| Internal I/O Connectors | Fan and Cooling related |
| Special Features | Extreme Engine Digi+ |
| Software Features | ROG Exclusive Software |
| ASUS Exclusive Software | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX Form Factor |
| Warranty | 3 Years |
Motherboard
| Brand | ASUS |
| Stock Status | IN STOCK |
| Chipset | X670 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | ATX |
| Platform | AMD |
| Max Memory Support | 192 GB |
