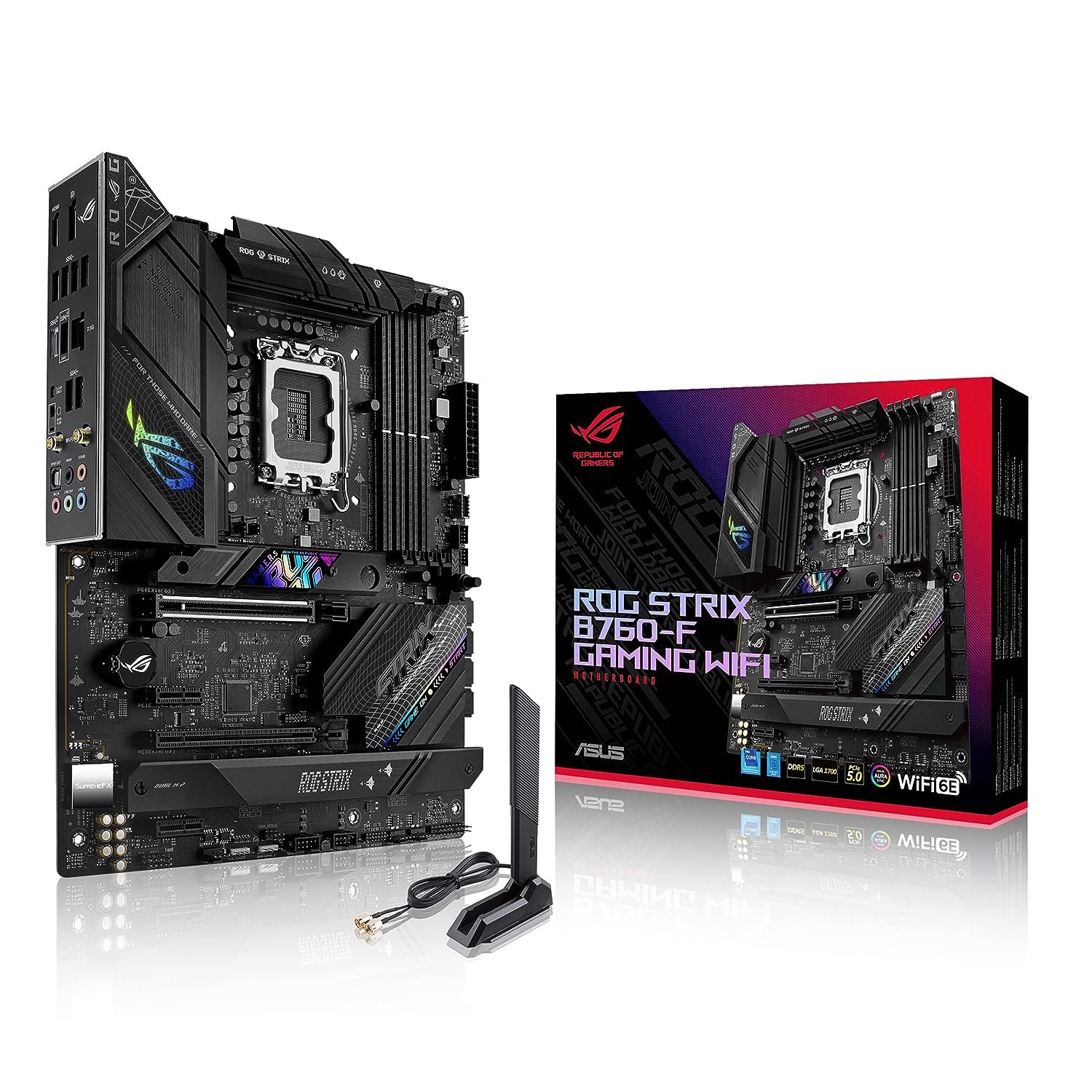

Features of the ROG Strix B760-F Motherboard
- 13th Gen Upgrade: The motherboard is positioned as a significant upgrade for the 13th generation, offering improved power delivery and DDR5 memory support.
- PCIe 5.0 Slot: It features a next-generation PCIe 5.0 slot, providing high-speed data transfer for graphics cards, enhancing overall gaming performance with maximum FPS.
- Hyperfast Connectivity: The motherboard supports hyperfast WiFi 6E and 2.5G LAN options, minimizing latency and providing fast network connections for gaming and other high-bandwidth activities.
- Distinctive Design: It boasts distinctive rainbow stripes and retro accents, adding aesthetic appeal and allowing users to showcase their gaming enthusiasm.
- Convenient Features:
- PCIE Slot Q-Release: Simplifies the process of detaching a PCIe card from the motherboard.
- M.2 Q-Latch: Facilitates easy installation and removal of SSDs from M.2 slots without the need for screws.
- Clear CMOS Button: Quickly resets BIOS settings to factory defaults or reboots the PC if necessary.
- BIOS FlashBack: Enables safe and simple BIOS updates without requiring memory or CPU installation.
- Q-LED: Provides visual indicators for power status and identifies potential issues for quick troubleshooting.
- Power Architecture: The motherboard features a robust power delivery system with 16+1 power stages rated at 60A each, ensuring stable power delivery even under heavy workloads.
- Quality Components: It incorporates high-end alloy chokes and durable capacitors designed to withstand extreme temperatures, enhancing overall performance and reliability.
- Enhanced Cooling: The motherboard utilizes a six-layer PCB design for efficient heat dissipation around voltage regulators, along with VRM heatsinks and M.2 heatsinks to keep critical components cool during operation.
- DDR5 Memory Support: The motherboard supports high-speed DDR5 memory modules, pushing memory performance beyond industry standards, with extensive tuning options available in the UEFI for advanced users.
- Fan Headers: It features four 4-pin fan headers with auto-detection for PWM or DC fans, allowing users to customize and optimize system cooling.
Overall, the ROG Strix B760-F motherboard is designed to deliver high performance, stability, and customization options for gaming and other demanding tasks.
Motherboard Specifications
| Specification | Details |
|---|---|
| CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x DisplayPort 1 x HDMI® port Graphics specifications may vary between CPU types. Supports max. 4K@60Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Software Features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software - Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility - DIGI+ VRM - PC Cleaner MyAsus - Norton 360 for Gamers - WinRAR UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 2 x M.2 Rubber Package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
