Case Size - Mid Tower:
Mid tower cases are a popular choice for many PC builders due to their versatile size. They offer a good balance between spaciousness and manageability, making them suitable for a wide range of builds. Motherboard Support:
The case supports various motherboard form factors, including EATX (Extended ATX), ATX, Micro-ATX, and Mini-ITX. This versatility allows users to choose the motherboard size that best fits their needs and budget. Drive Bays:
The case features multiple drive bays for installing storage drives, including both 2.5" and 3.5" drives. This flexibility allows users to customize their storage configuration based on their requirements, whether it's for HDDs, SSDs, or a combination of both. Expansion Slots:
The case provides ample expansion slots for installing additional components such as graphics cards, sound cards, or other expansion cards. The additional vertical slots offer even more flexibility for vertical GPU mounting or installing other expansion cards. Front I/O Ports:
The front panel of the case includes various I/O ports for convenient connectivity, including USB ports for peripherals, headphone and microphone jacks for audio devices, and other USB 3.1 Gen1 ports for high-speed data transfer. Tempered Glass:
The presence of tempered glass panels enhances the aesthetic appeal of the case by providing a clear view of the internal components while also offering durability and scratch resistance. Cooling Support:
The case offers extensive cooling support with multiple fan mounting points and radiator support for liquid cooling solutions. This ensures efficient heat dissipation and airflow within the case, which is essential for maintaining optimal component temperatures and performance, especially during intensive tasks such as gaming or content creation. Maximum GPU Length, CPU Cooler Height, and PSU Length:
These specifications dictate the maximum dimensions of the GPU, CPU cooler, and power supply unit that can be accommodated within the case. Ensuring compatibility with these components is crucial for avoiding clearance issues and ensuring a proper fit. Removable Dust Filters:

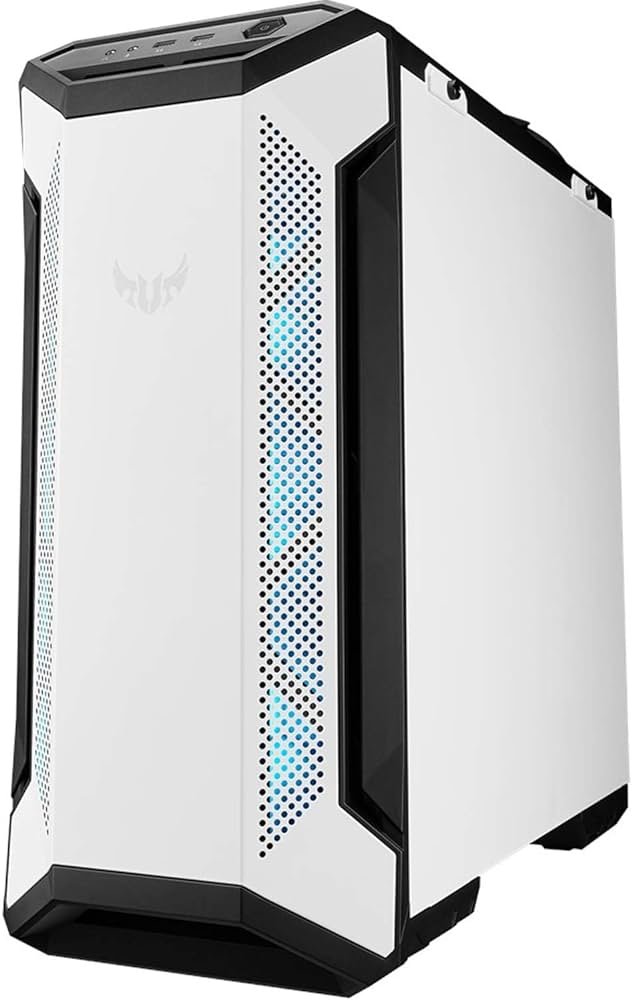

The inclusion of removable dust filters in various locations helps prevent dust buildup inside the case, which can accumulate over time and affect the performance and lifespan of internal components. Removing and cleaning these filters periodically can help maintain optimal airflow and reduce the risk of hardware damage due to dust accumulation. Overall, these specifications provide a comprehensive overview of the TUF Gaming GT501 Case, highlighting its key features and capabilities for PC builders and enthusiasts.
| Specification | Description |
|---|---|
| Case Size | Mid Tower |
| Motherboard Support | EATX (12"x10.9") ATX Micro-ATX Mini-ITX |
| Drive Bays | 3 x 2.5" Bay 4 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 7 2 (additional vertical) |
| Front I/O Port | 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1 |
| Tempered Glass | Yes (Tempered Glass) |
| Radiator Support (Front) | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Rear) | 120 mm 140 mm |
| Cooling Support (Front) | 3 x 120 mm 2 x 140 mm |
| Cooling Support (Top) | 3 x 120 mm 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| Pre-installed Fans (Front) | 3 x 120 mm (RGB) |
| Pre-installed Fans (Rear) | 1 x 140 mm (PWM) |
| Maximum CPU Cooler Height | 180mm |
| Maximum GPU Length | 420mm |
| Maximum PSU Length | 240mm |
| Removable Dust Filters | Front Top Bottom |
| Maximum Cable Management Space | 30 mm |
| Dimensions | 552 x 251 x 545 mm |
| Weight | 10.5 Kg |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
