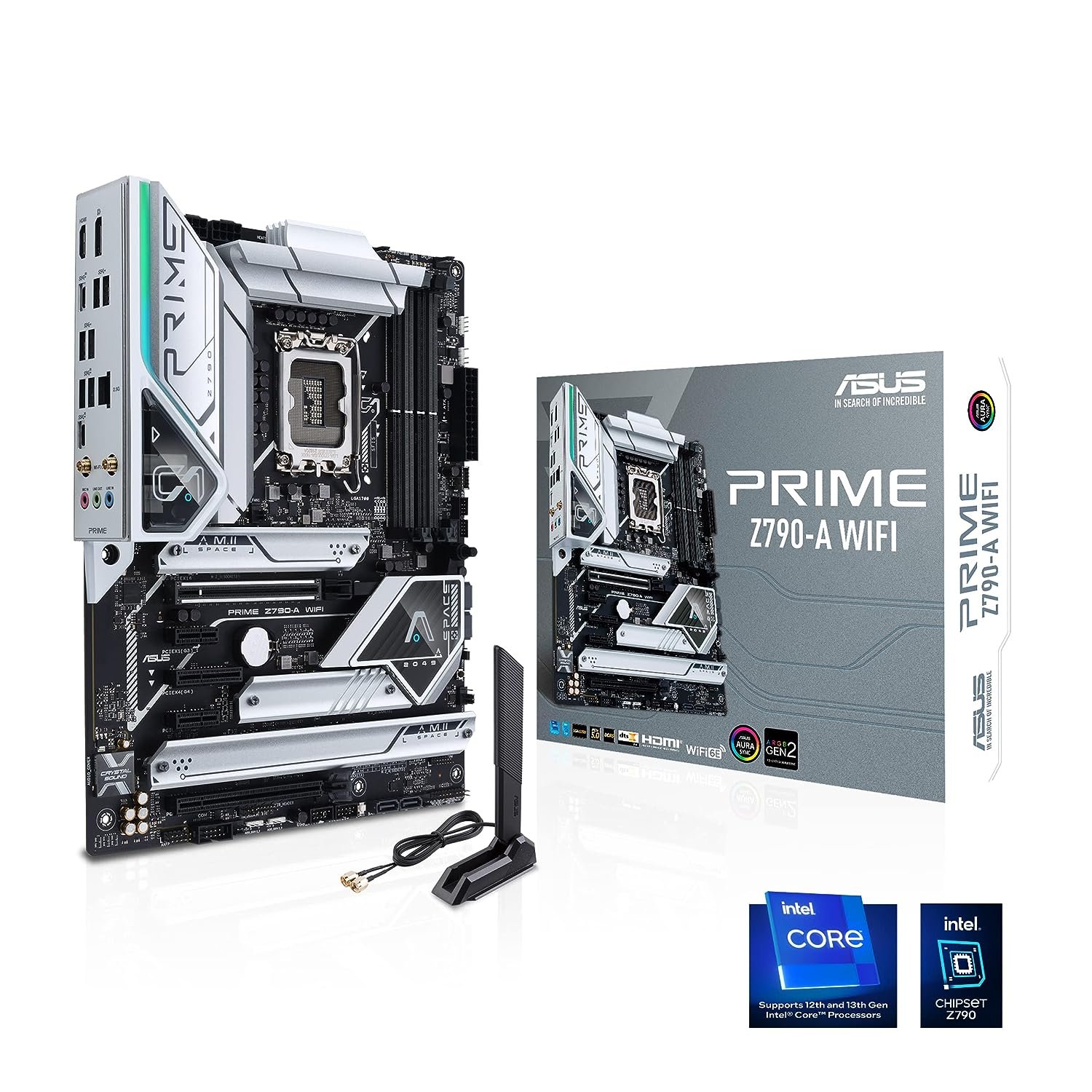

ASUS Prime Z790-A WIFI-CSM Motherboard
The ASUS Prime Z790-A WIFI-CSM motherboard is engineered to leverage the full potential of 13th Gen Intel® Core™ Processors, offering robust power delivery, efficient cooling solutions, and intuitive customization options. Explore its key features in detail:
ASUS Corporate Stable Model (CSM)
As part of ASUS's Corporate Stable Model program, this motherboard ensures long-term reliability and stability with up to 36 months of product lifecycle support. It includes ASUS Control Center Express, a sophisticated IT management software suite for seamless administrative control.
Advanced Cooling System
- M.2 Heatsinks: Four M.2 slots are covered by three dedicated heatsinks, preventing overheating during high-speed data transfers and optimizing the performance of M.2 storage devices.
- VRM Heatsinks and Thermal Pads: Extensive heatsinks over VRMs and chokes, along with specially designed thermal pads, enhance heat dissipation and cooling efficiency, boosting overall performance.
Customizable Cooling Controls
- Dynamic Temperature Management: Each fan header dynamically adjusts based on three thermal sensors, optimizing cooling for both GPU- and CPU-intensive tasks.
- AIO Pump Header: Designed for PWM/DC setups, this header supports self-contained water-cooling systems, ensuring efficient cooling for liquid-cooled setups.
- Integrated Protection: Built-in circuitry protects each fan header from overheating and overcurrent, ensuring enhanced motherboard longevity and reliability.
- Flexible Fan Support: All onboard fan headers support automatic detection of PWM or DC fans, providing versatility for various cooling configurations.
Robust Power Delivery
- ProCool Connectors: Exclusive connectors improve PSU connectivity with 8+8 pin configurations, delivering stable 12-volt power directly to processors for enhanced performance.
- 16 + 1 Teamed Power Stages: Featuring 16 + 1 power stages rated for 60 amperes each, integrating high-side and low-side MOSFETs and drivers into packages for efficient power delivery and stability.
Conclusion
The ASUS Prime Z790-A WIFI-CSM motherboard is designed for users and PC enthusiasts who demand high performance, reliability, and customizable cooling solutions. With its advanced power delivery, effective cooling system, and user-friendly customization options, it's an ideal choice for building powerful computing systems. Whether for gaming, content creation, or professional use, this motherboard delivers the features and performance necessary for an exceptional computing experience.
| Specifications Details | __parsed_extra |
|---|---|
| Model PRIME | Z790-A WIFI-CSM |
| CPU Intel Socket LGA1700 for 14th | 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel Z790 Chipset |
| Memory 4 x DIMM | Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 |
| Graphics 1 x DisplayPort | 1 x HDMI port |
| Expansion Slots 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x4, 2 x PCIe 3.0 x1 |
| Storage 4 x M.2 slots | 4 x SATA 6Gb/s ports |
| Ethernet 1 x Intel 2.5Gb Ethernet | ASUS LANGuard |
| Wireless & Bluetooth Wi-Fi 6E | Bluetooth v5.3 |
| USB Rear: 1 x USB 3.2 Gen 2x2 (Type-C) | 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C), 4 x USB 3.2 Gen 1 (Type-A) |
| Front: 1 x USB 3.2 Gen 2 (Type-C) | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 (Type-C) | 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C), 4 x USB 3.2 Gen 1 (Type-A) |
| Internal I/O Connectors Various fan and cooling headers | power connectors, M.2 slots, SATA ports, USB headers, etc. |
| Special Features ASUS 5X PROTECTION III | ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software Features Armoury Crate | AI Suite 3, ASUS CPU-Z, DTS:X® Ultra, MyASUS, Norton 360 Deluxe, WinRAR, UEFI BIOS, ASUS EZ DIY, MemTest86 |
| BIOS 256 Mb Flash ROM | UEFI AMI BIOS |
| Manageability WOL by PME | PXE |
| Accessories SATA cables | Wi-Fi antenna, Q-connector, M.2 Rubber Packages, Screw package for M.2 SSD, ACC Express Activation Key Card |
| Operating System Windows 11 | Windows 10 64-bit |
| Form Factor ATX Form Factor | 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
