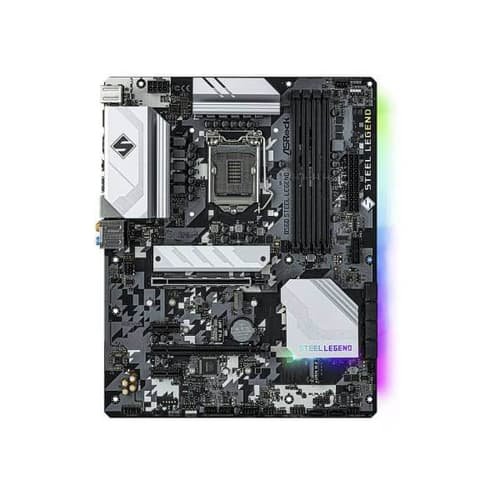

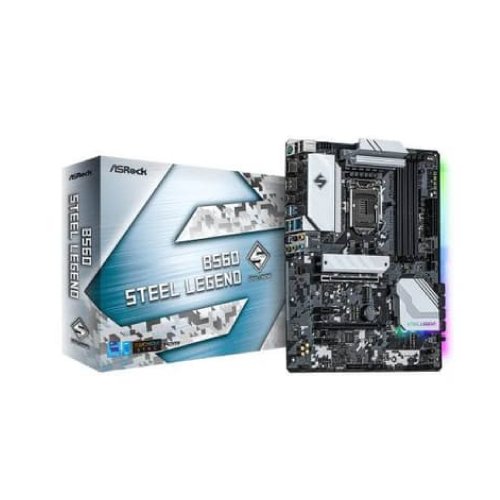

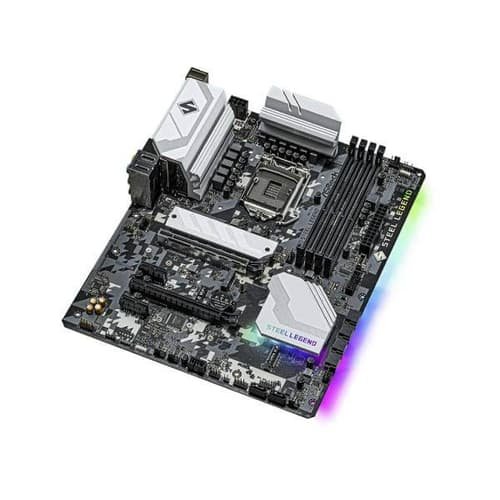

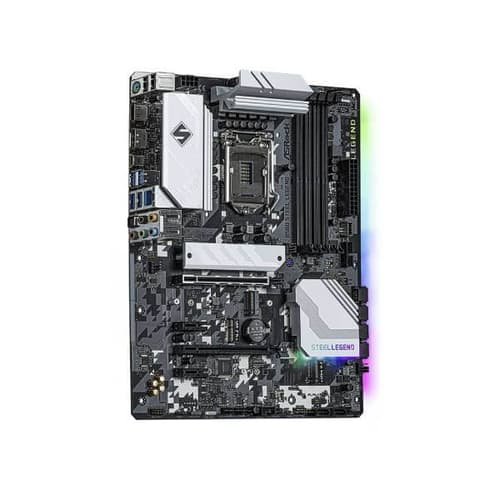

ASRock B560 Steel Legend Motherboard

The ASRock B560 Steel Legend motherboard is engineered to provide high performance and a wealth of features, making it ideal for gamers, content creators, and PC enthusiasts. Below is an in-depth look at its key features and specifications:

Processor Compatibility

• Supports 10th Gen and 11th Gen Intel® Core™ Processors: This motherboard is compatible with both 10th and 11th Generation Intel® Core™ processors, offering a flexible platform that accommodates a variety of computing needs. This ensures that your system is ready for the latest in processing technology.

Power Design

• 10 Phase Dr.MOS Power Design: Featuring a robust 10-phase Dr.MOS power delivery system, the B560 Steel Legend ensures efficient and stable power supply to the CPU. Dr.MOS integrates the driver and MOSFETs for better efficiency and performance, crucial for overclocking and heavy workloads.

Memory Support

• Supports DDR4 4800MHz (OC): The motherboard supports high-speed DDR4 RAM modules up to 4800MHz, with potential for higher speeds through overclocking. This allows for improved system responsiveness and multitasking, essential for gaming and professional use.

Expansion Slots

• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1: The motherboard includes one PCIe 4.0 x16 slot for high-bandwidth components like modern graphics cards, one PCIe 3.0 x16 slot for additional expansion, and two PCIe 3.0 x1 slots for peripherals such as network and sound cards.

Wireless Connectivity

• 1 x M.2 Key-E for WiFi: This dedicated M.2 slot is designed for Wi-Fi cards, allowing for flexible wireless connectivity options without occupying other expansion slots.

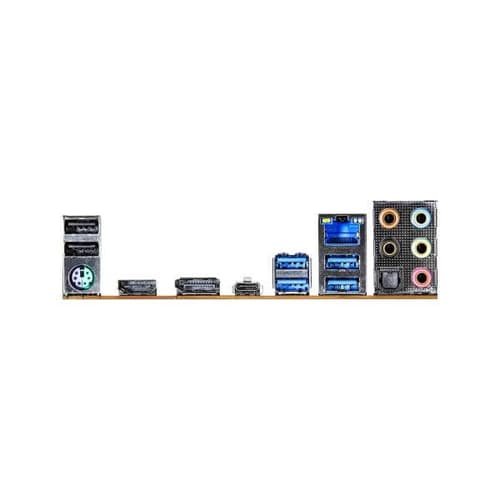

Graphics Output Options

• HDMI and DisplayPort: The B560 Steel Legend offers both HDMI and DisplayPort outputs, providing versatile options for connecting high-definition displays. These ports support high-definition video and audio signals, ensuring clear visuals and sound.

Audio Capabilities

• 7.1 Channel HD Audio (Realtek ALC897 Audio Codec) with Nahimic Audio: Experience high-quality, immersive audio with the Realtek ALC897 audio codec, supporting 7.1 channel high-definition sound. Nahimic Audio software enhances sound quality, providing virtual surround sound for gaming, movies, and music.

Storage Options

• 6 SATA3 Ports: These ports allow for the connection of traditional SATA hard drives or SSDs, supporting data transfer rates up to 6 Gb/s.
• 1 x Hyper M.2 (PCIe Gen4 x4): This slot supports the latest NVMe SSDs with a PCIe Gen4 x4 interface, offering exceptional data transfer speeds for faster boot times and application loading.
• 1 x Ultra M.2 (PCIe Gen3 x4): An additional M.2 slot supporting a PCIe Gen3 x4 interface for high-speed NVMe SSDs.
• 1 x M.2 (PCIe Gen3 x2 & SATA3): A versatile M.2 slot that supports both PCIe Gen3 x2 and SATA3 interfaces, ensuring compatibility with various storage devices.

USB Connectivity

• 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s): A front panel USB 3.2 Gen2x2 Type-C port providing ultra-fast data transfer rates up to 20 Gb/s, perfect for modern peripherals.
• 1 x Rear USB 3.2 Gen2 Type-C (10 Gb/s): A rear panel USB 3.2 Gen2 Type-C port with speeds of 10 Gb/s, ensuring fast and convenient connectivity.
• 6 x USB 3.2 Gen1 Ports (4 Rear, 2 Front): Multiple USB 3.2 Gen1 ports for connecting various devices, supporting data transfer rates up to 5 Gb/s.

Networking

• Dragon 2.5 Gigabit LAN: The motherboard features a high-speed 2.5 Gigabit Ethernet controller branded as "Dragon," providing enhanced network performance for gaming, streaming, and data transfers.

Conclusion

The ASRock B560 Steel Legend motherboard combines advanced power design, extensive connectivity options, and high-speed memory support to deliver a powerful and versatile platform. Whether you're building a gaming rig, a high-performance workstation, or a multi-functional home PC, the B560 Steel Legend offers the features and performance to meet your demanding needs.
