Processor Compatibility

Supports both 10th and 11th Generation Intel® Core™ Processors, ensuring a versatile platform for various computing needs.

Power Design

Equipped with an 8 Phase Power Design, the B560 Pro4 ensures stable and efficient power delivery to the CPU, enhancing system stability and performance, especially during overclocking and high-load scenarios.

Memory Support

Supports DDR4 memory modules with overclocking capabilities up to 4800MHz, allowing users to achieve higher memory speeds for improved system responsiveness and multitasking efficiency.

Expansion Slots

• 1 x PCIe 4.0 x16 Slot: Offers high-bandwidth connectivity for the latest graphics cards, enabling smooth gaming and content creation.
• 1 x PCIe 3.0 x16 Slot: Provides additional support for graphics cards or other PCIe devices.
• 2 x PCIe 3.0 x1 Slots: Suitable for expansion cards such as sound cards, network cards, and more.

M.2 Slots for Storage and Connectivity

• 1 x M.2 Key-E Slot: Designed for WiFi modules, enabling wireless connectivity options.
• 1 x Hyper M.2 Slot (PCIe Gen4 x4): Supports the latest NVMe SSDs with PCIe 4.0, offering exceptional data transfer speeds for faster boot times and application loading.
• 1 x Ultra M.2 Slot (PCIe Gen3 x4): Accommodates high-speed NVMe SSDs, providing a balance of performance and capacity.
• 1 x M.2 Slot (PCIe Gen3 x2 & SATA3): Versatile storage options for both NVMe and SATA SSDs, ensuring compatibility with a wide range of drives.

Graphics Output Options

Multiple graphics output options including HDMI and DisplayPort, providing flexibility for connecting various monitors and displays, supporting high-resolution output for a better visual experience.

Audio Capabilities

7.1 Channel HD Audio (Realtek ALC897 Audio Codec) with Nahimic Audio technology, delivering high-quality, immersive audio for gaming, movies, and music.

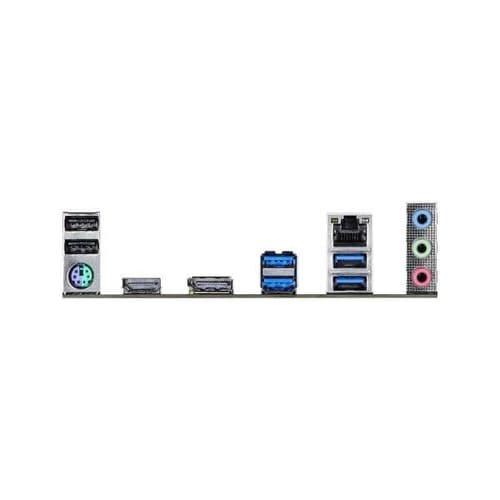

SATA and USB Connectivity

• 6 x SATA3 Ports: Provide ample connectivity for traditional hard drives and SSDs, supporting RAID configurations for data redundancy and performance.
• 8 x USB 3.2 Gen1 Ports (4 Rear, 4 Front): Ensure fast data transfer speeds for peripherals such as external drives, keyboards, and mice.
• 4 x USB 2.0 Ports (2 Rear, 2 Front): Additional USB ports for older peripherals and devices.
• 1 x Front USB 3.2 Gen1 Type-C Port: Delivers up to 5Gbps data transfer rate with a reversible USB design, making it easier to connect devices on the front panel of the case.

Networking

Intel® Gigabit LAN provides reliable and fast wired networking, ensuring smooth online gaming and efficient data transfer across your network.

Conclusion

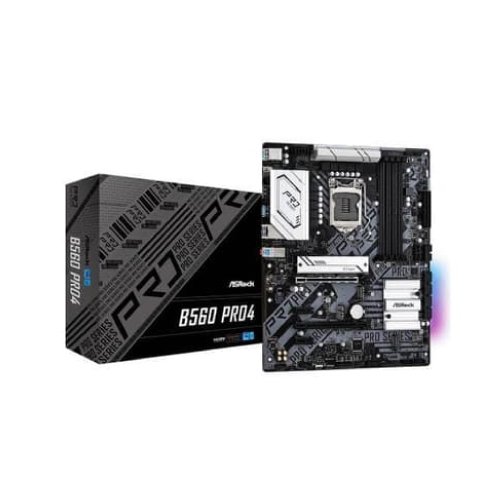

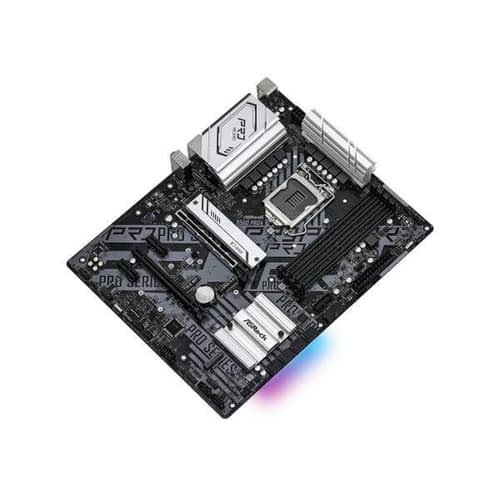

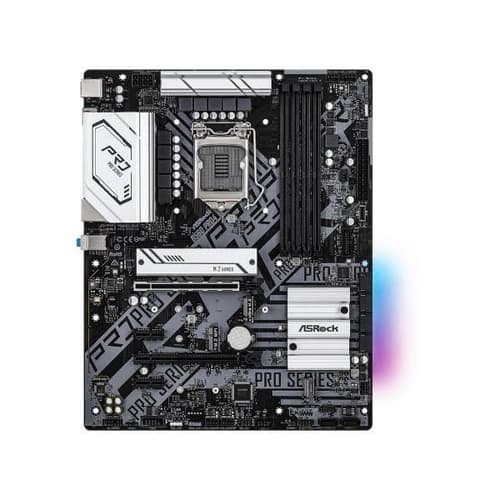

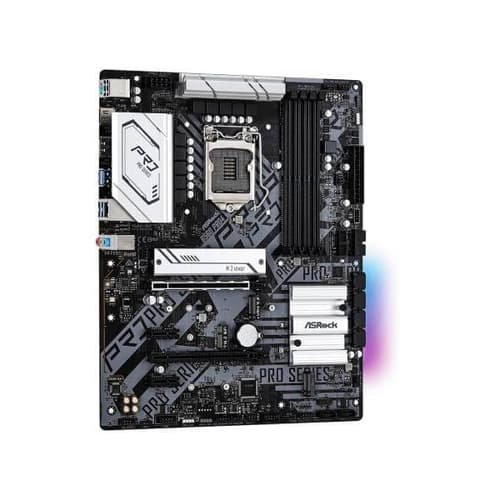

The ASRock B560 Pro4 motherboard combines robust performance, extensive connectivity options, and advanced features, making it an ideal choice for users seeking a reliable and versatile platform for their computing needs. Whether you're building a gaming rig, a high-performance workstation, or a versatile home PC, the B560 Pro4 offers the features and performance to meet your demands.
