| Platform |
Desktop |
| Market Segment |
Mainstream Desktop |
| Product Family |
AMD Ryzen™ Processors |
| Product Line |
AMD Ryzen™ 5 Desktop Processors |
| Consumer Use |
Yes |
| Architecture |
Zen 3 |
| CPU Cores |
6 |
| Multithreading (SMT) |
Yes |
| Threads |
12 |
| Max. Boost Clock |
Up to 4.2GHz |
| Base Clock |
3.6GHz |
| L1 Cache |
384KB |
| L2 Cache |
3MB |
| L3 Cache |
16MB |
| Default TDP |
65W |
| Processor Technology for CPU Cores |
TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size |
180mm² |
| Package Die Count |
1 |
| Unlocked for Overclocking |
Yes |
| CPU Socket |
AM4 |
| Socket Count |
1P |
| Supporting Chipsets |
X570, X470, X370, B550, B450 B350, A520 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) |

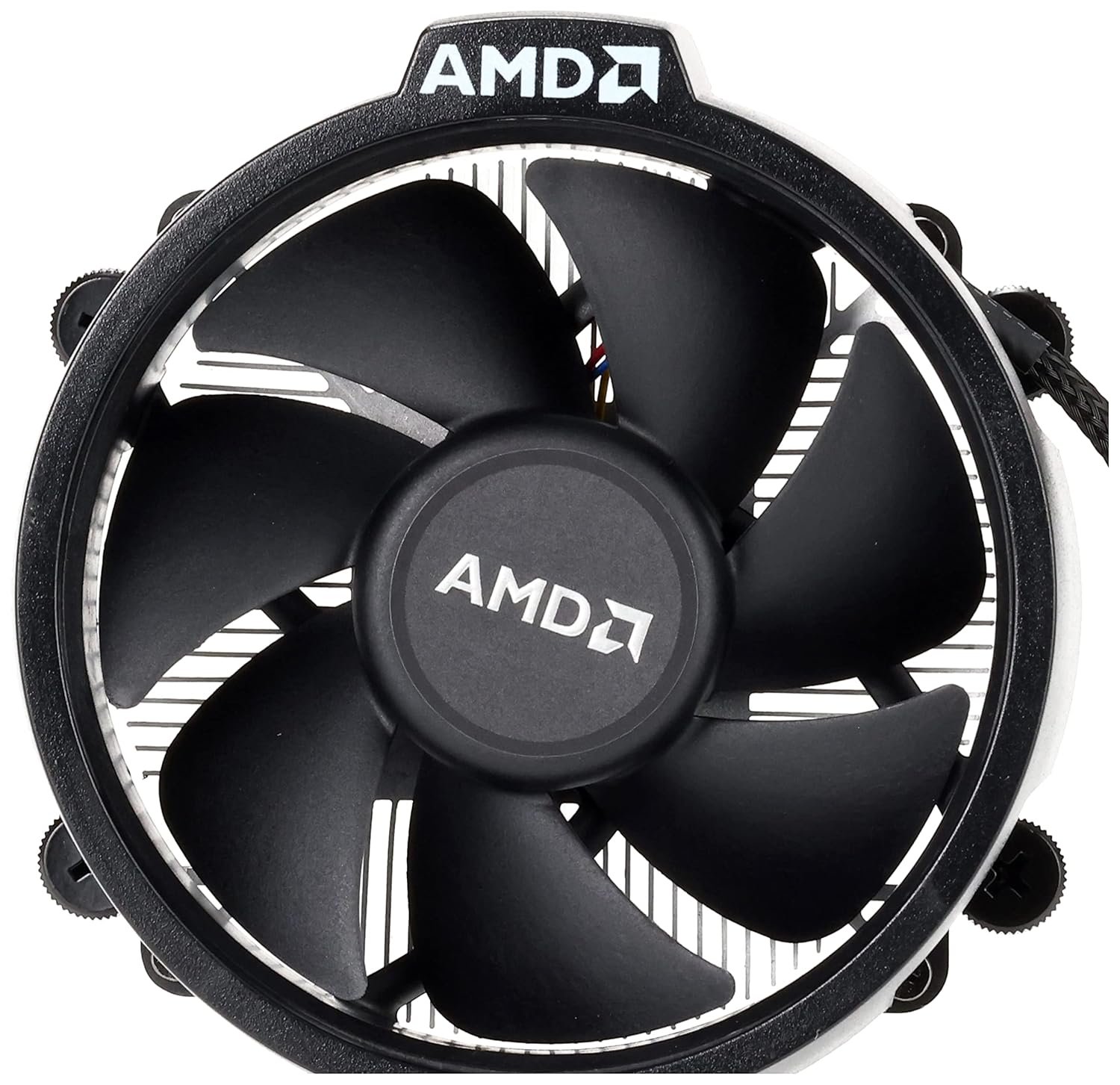

AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) |
90°C |
| OS Support |
Windows 11 - 64-Bit Edition |
| Windows 8.1 - 64-Bit Edition |
|
| RHEL x86 64-Bit |
|
| Ubuntu x86 64-Bit |
|
| Operating System (OS) support will vary by manufacturer. |
|
| Connectivity |
|
| Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
| USB Type-C® Support |
Yes |
| Native USB 4 (40Gbps) Ports |
0 |
| Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
| Native USB 2.0 (480Mbps) Ports |
0 |
| Native SATA Ports |
2 |
| PCI Express® Version |
PCIe 3.0 |
| Native PCIe® Lanes (Total/Usable) |
24/20 |
| Additional Usable PCIe Lanes from Motherboard |
AMD X570 16x Gen 3 |
| AMD X470 2x Gen 3 |
|
| AMD X470 8x Gen 2 |
|
| NVMe Support |
Boot, RAID0, RAID1, RAID10 |
| System Memory Type |
DDR4 |
| Memory Channels |
2 |
| Max. Memory |
128GB |
| System Memory Subtype |
UDIMM notice |
| System Memory Specification |
Up to 3200MHz |
| Max Memory Speed |
2x1R DDR4-3200 |
| 2x2R DDR4-3200 |
|
| 4x1R DDR4-2933 |
|
| 4x2R DDR4-2667 |
|
| ECC Support |
No |
| Graphics Capabilities |
|
| Integrated Graphics |
No |
| Graphics Model |
Discrete Graphics Card Required |
| & Product ID |
100-100000457BOX |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
