TP-Link TL-SG116E 16-Port Gigabit Desktop Switch

The TP-Link TL-SG116E Desktop Switch is a 16-port Gigabit Easy Smart switch designed to provide fast, stable, and flexible network connectivity for small offices, businesses, surveillance systems, and advanced home networks. Unlike basic switches, it supports Gigabit speeds (10/100/1000 Mbps), allowing devices such as computers, servers, smart TVs, access points, and IP cameras to transfer data much faster and more smoothly. Being as an “Easy Smart” switch, it offers simple management features through a web interface or utility software, enabling users to monitor traffic, prioritize important data, and segment the network without needing advanced networking skills.

This switch includes intelligent features that improve performance and security. VLAN support helps separate network traffic for better security and efficiency, while a networking feature that prioritizes important data traffic to ensure smooth and uninterrupted performance, smoothly runs important applications like video streaming, voice calls, or surveillance feeds to prevent lag. Loop prevention and IGMP snooping improve network stability and optimize multicast traffic, making it ideal for IP camera systems and streaming. Its fanless metal design ensures silent operation and durability, while energy-efficient technology automatically reduces power consumption based on link status and cable length. Overall, this desktop switch offers a balance of high speed, smart management, reliability, and energy savings, making it a strong upgrade over unmanaged switches.

Key Feature

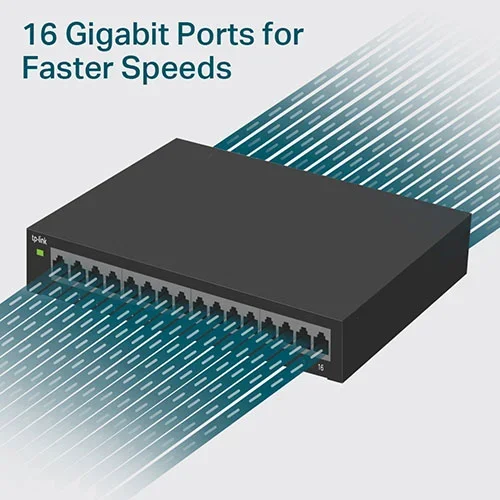

16-Port Gigabit Connectivity
This switch provides sixteen 10/100/1000 Mbps ports, delivering high-speed wired connections for computers, servers, access points, smart TVs, and IP cameras. Gigabit speeds ensure faster data transfer, smoother file sharing, and reliable performance for bandwidth-intensive tasks such as HD streaming and large data backups.

Easy Smart Management
Unlike basic unmanaged switches, this desktop switch includes simple management features accessible through a web interface or utility software. Users can monitor network traffic, configure basic settings, and optimize performance without needing advanced networking knowledge, making it suitable for small business environments.

VLAN for Network Segmentation
Virtual LAN (VLAN) support allows users to divide a single physical network into separate logical groups. This improves security by isolating sensitive data and reduces unnecessary traffic, making the network more organized and efficient.

Bandwidth Prioritization
This  enables the switch to prioritize critical traffic such as video conferencing, VoIP calls, and surveillance feeds. By giving priority to important data, it prevents delays and ensures smooth performance even when the network is heavily used.

IGMP Snooping for Optimized Multicast Traffic
IGMP snooping enhances the efficiency of multicast applications like IPTV and video streaming by directing data only to the devices that need it. This reduces unnecessary traffic and improves overall network performance.

Loop Prevention and Network Stability
Loop prevention detects network loops caused by incorrect cabling or configuration and automatically blocks redundant paths. This prevents broadcast storms and helps maintain stable and reliable network operation.

Energy-Efficient Operation
The switch incorporates energy-saving technology that adjusts power usage based on link status and cable length. This reduces electricity consumption, lowers heat generation, and contributes to longer device life.

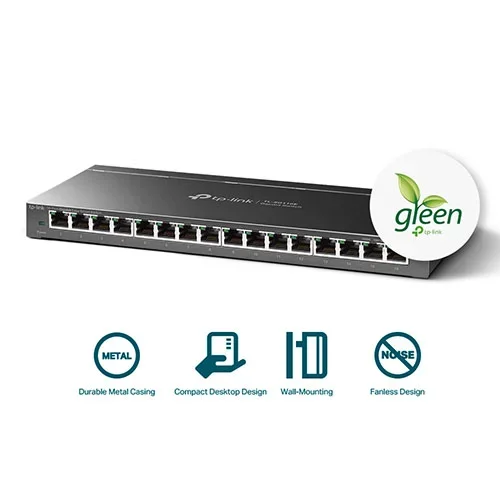

Durable Fanless Metal Design
Built with a sturdy metal housing and fanless design, the switch operates silently while providing better heat dissipation and long-term durability. It is ideal for quiet office environments and continuous operation.

Technical Specification
