The Thermaltake SWAFAN EX12 ARGB introduces a magnetic force design to ARGB fans, combining it with the iconic swappable fan blade design. This innovative design enhances both the aesthetic appeal and functionality of the fans. Let's delve into its features:

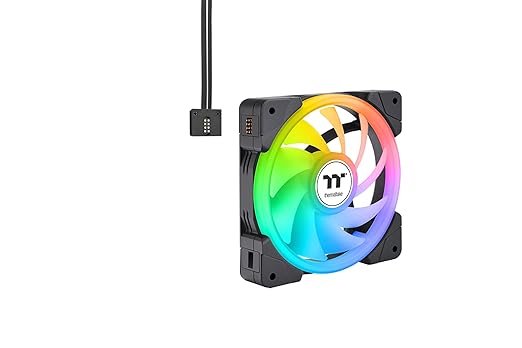

Quick Connect with Magnetic Force Design: The SWAFAN EX12 ARGB features a magnetic force design that allows for easy connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector. This simplifies the assembly process, reduces installation time, and enhances user-friendliness during PC building.

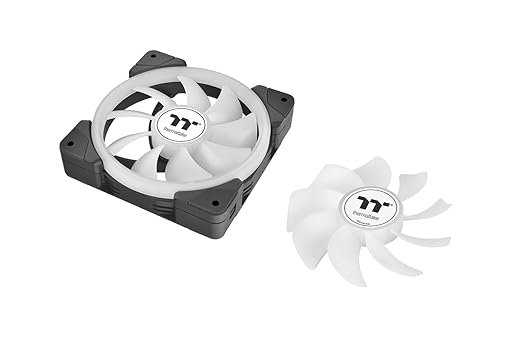

Pop and Insert, it is that easy: The fan blades of the SWAFAN EX12 ARGB can be easily popped out and inserted, making maintenance and customization effortless. Additionally, the fan blades can be rinsed with water for cleaning, ensuring longevity and cleanliness.
Versatile Lighting: This fan allows users to enjoy both aesthetics and airflow direction. With two independent LED rings featuring a total of 20 LEDs (6 in the inner ring and 14 in the outer ring), users can explore various build themes and lighting effects, enhancing the visual appeal of their PC builds.
Great Lighting Effects with 16.8M Colors: The SWAFAN EX12 ARGB offers a wide range of lighting effects with 16.8 million colors, providing users with extensive customization options to match their preferences and build themes.
Sync with Motherboard RGB Software: Designed to synchronize with popular motherboard RGB lighting software such as ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome, the SWAFAN EX12 ARGB allows seamless integration with existing RGB setups. It supports motherboards with a 5V addressable RGB header, enabling direct control of the lights from the motherboard software without the need for additional controllers or software.
Overall, the Thermaltake SWAFAN EX12 ARGB offers a combination of innovative design, customizable lighting, and ease of installation, making it an ideal choice for users seeking both aesthetics and performance in their PC builds.
Thermaltake SWAFAN EX12 Specifications
| Specification | Details |
|---|---|
| Model | SWAFAN EX12 |
| P/N | CL-F167-PL12SW-A |
| Fan Dimension | 120 x 120 x 25 mm |
| Interface | 2510-4 PIN PWM, 5V ARGB header-3PIN |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12 V - 0.27 A , 5 V – 0.72 A (one fan) |
| Power Input | 12 V – 3.24 W , 5 V – 3.6 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max. Air Pressure | Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) |
| Max Air Flow | Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) |
| Noise Level | Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Included Items | Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Fan
| Brand | THERMALTAKE |
| Stock Status | IN STOCK |
| LED | ARGB |
| Fan Size | 120 MM |
| Shipping Cost |
|
| Shop Location |
