Compliance with latest ATX 12V V2.3 Standard: This ensures that the power supply unit (PSU) adheres to the most recent version of the ATX 12V standard, which is a set of specifications for computer power supplies. Compliance with this standard ensures reliability and compatibility with modern computer systems.
High current & single +12V rail: The PSU has a single high-current +12V rail, which is important for providing stable power to components like the CPU and GPU, especially in high-performance systems. This design can handle demanding loads more efficiently.

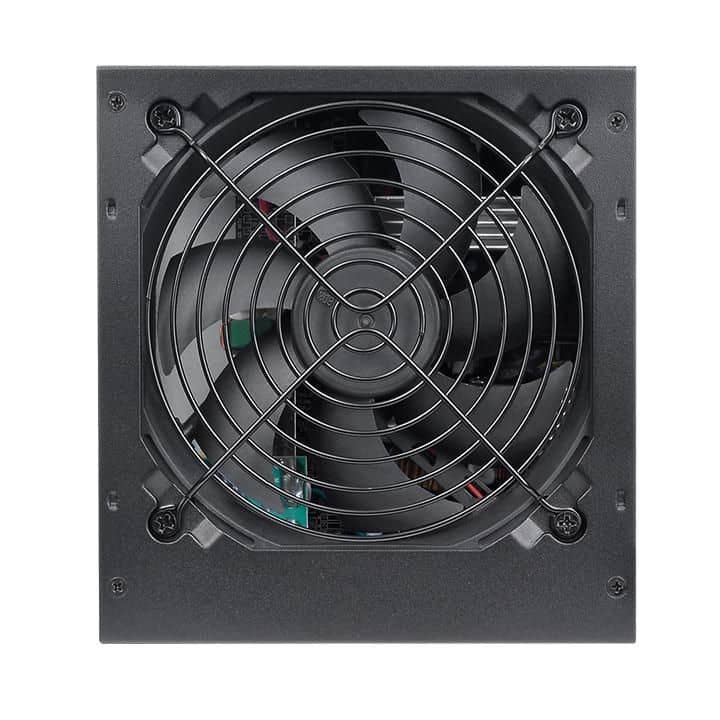

Ultra-quiet 120mm cooling fan: The PSU is equipped with a 120mm fan that operates quietly while still providing excellent airflow. This helps in keeping the PSU and the components inside the computer case cool, which is essential for their optimal performance and longevity.
Intel & AMD CPU compliant: This indicates that the PSU is compatible with both Intel and AMD CPUs, covering a wide range of processors available on the market. It ensures that the PSU can reliably power systems built with CPUs from either manufacturer.
Nvidia & ATI/AMD graphic card compatible: Similarly, the PSU is compatible with both Nvidia and AMD (formerly ATI) graphics cards, ensuring compatibility with a wide range of GPUs. This ensures that the PSU can reliably power systems with different types of graphics cards.
Dimension (W/H/D): 150mm x 85.1mm x 141mm: Provides the physical dimensions of the PSU, which is crucial for ensuring compatibility with the computer case. It ensures that the PSU will fit properly into standard ATX-compatible cases.
High reliability: MTBF>100,000 hours: This indicates that the PSU has a Mean Time Between Failures (MTBF) of over 100,000 hours, highlighting its reliability and longevity under normal operating conditions. A higher MTBF suggests a lower likelihood of failure over time.
Built-in industry-grade protections: The PSU includes built-in protections against common electrical issues like overcurrent, overvoltage, overpower, and short circuits. These protections help safeguard the connected components from damage due to electrical faults, enhancing the overall reliability and safety of the system.
Safety / EMI Approvals: TUV, CE, GOST: The PSU has obtained safety and electromagnetic interference (EMI) certifications from reputable organizations such as TUV, CE, and GOST. These approvals ensure that the PSU meets international standards for safety and electromagnetic compatibility, providing assurance of its quality and reliability.

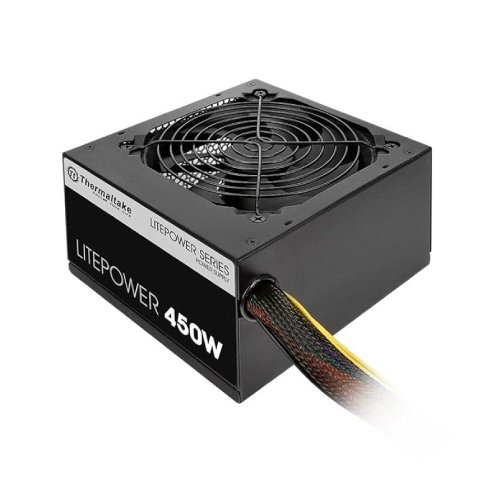

LT-450NL2NK Specifications
| Feature | Description |
|---|---|
| Model | LT-450NL2NK |
| Type | ATX 12V 2.3 |
| Max. Output Capacity | 450W |
| Color | Black |
| Dimension | 150mm x 85.1mm x 141mm |
| PFC (Power Factor Correction) | W/O PFC |
| Power Good Signal | "Power Good" signal rise time is within 1ms. |
| Hold Up Time | 16msec (minimum) at 80% of Max. load at 115/230 Vac input. |
| Input current | 230Vac/4Amax |
| Input Frequency Range | 60Hz / 50Hz |
| Input Voltage | Only 230V |
| Operating Temperature | 10°C to +40°C |
| Operating Humidity | To 85% relative humidity |
| Storage Temperature | -20°C to +70°C |
| Storage Humidity | To 95% relative humidity |
| Cooling System | 120mm Fan: 50%0-1900 RPM |
| Efficiency | 70% typical at nominal line, maximum load. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | TUV, CE, Gost |
| PCI-E adaptor cable | PCI-E 6 PIN (x1) |
| Warranty | 2 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
SMPS
| Brand | THERMALTAKE |
| Stock Status | IN STOCK |
| Wattage | 450 WATT |
| Certification | NONE |
| Modular | NON MODULAR |
| PCle Connector (6+2) | 2 |
| SATA Connector | 4 |
| Peripheral (4-Pin) | 4 |
| Series | LITEPOWER SERIES |
