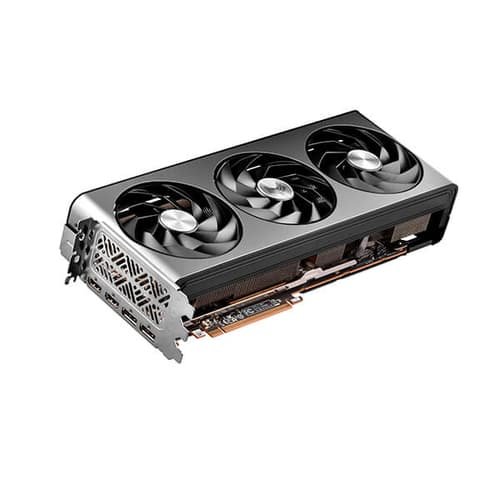

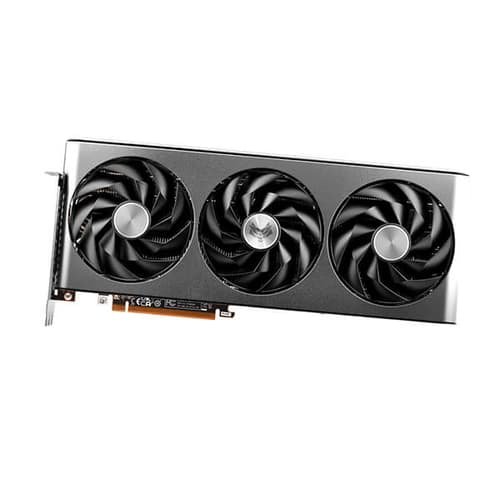

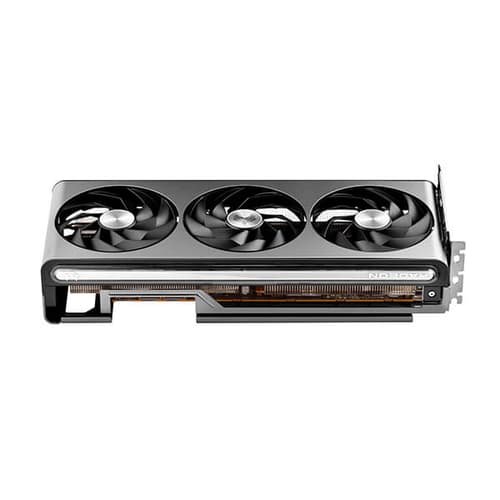

The SAPPHIRE NITRO+ AMD Radeon™ RX 7800 XT is engineered for high-performance 1440p and 4K gaming. Featuring the latest RDNA™ 3 architecture, 16GB of ultra-fast GDDR6 memory, and advanced cooling technologies, this overclocked graphics card offers stunning visuals, exceptional efficiency, and quiet operation — making it an excellent choice for enthusiasts and competitive gamers alike.
Features
RDNA™ 3 Architecture
Built on AMD's latest RDNA™ 3 architecture for enhanced performance-per-watt, improved ray tracing capabilities, and advanced graphics rendering — ideal for modern AAA titles and creative workloads.
16GB GDDR6 Memory
Equipped with 16GB of high-speed GDDR6 VRAM on a wide 256-bit memory interface, running at an effective memory clock of 19.5 Gbps. This provides ample bandwidth and memory capacity for high-resolution gaming and multitasking.
Impressive Clock Speeds
Boost clock speeds up to 2565 MHz and a typical game clock of around 2254 MHz offer smooth and responsive frame rates in demanding scenarios, giving you a performance edge.
Massive Compute Power
Features 3840 stream processors and 60 compute units for highly parallelized rendering and fast execution of complex graphical tasks. Includes 60 dedicated Ray Accelerators for enhanced real-time ray tracing performance.
Tri-X Cooling System
Utilizes SAPPHIRE’s premium Tri-X triple-fan cooling solution with composite heat pipes and a large aluminum fin stack for efficient heat dissipation. Angular velocity fan blades provide improved airflow and pressure, ensuring thermal stability even under heavy load.
Intelligent Fan Control
Fan speed dynamically adjusts based on GPU temperature and workload. Includes support for zero RPM fan mode during low-power operation for silent performance.
Premium Build Quality
Uses a high-TG copper PCB, robust fuse protection, and ultra-durable components to ensure long-term stability and consistent power delivery. Metal backplate adds structural integrity and assists with heat distribution.
Display Support & Connectivity
Comes with 2x HDMI 2.1 and 2x DisplayPort 2.1 outputs, supporting up to 7680 x 4320 resolution for 8K visuals and multi-monitor setups. Compatible with the latest high-refresh rate displays.
Power Requirements
Requires 2 x 8-pin PCIe power connectors. Recommended power supply is 700W or higher due to its approximate 288W board power draw.
Software & Compatibility
Fully compatible with DirectX 12 Ultimate, Vulkan, and AMD FidelityFX™ Super Resolution (FSR). Bundled with driver and software utilities for monitoring, overclocking, and lighting control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 11330-01-20G |
| GPU | AMD Radeon™ RX 7800 XT |
| Memory | 16GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Speed | 19.5 Gbps Effective |
| Boost Clock | Up to 2565 MHz |
| Game Clock | 2254 MHz |
| Stream Processors | 3840 |
| Ray Accelerators | 60 |
| Infinity Cache | 64MB |
| Ports | 2 x HDMI 2.1, 2 x DisplayPort 2.1 |
| Max Resolution | 7680 x 4320 (8K) |
| Cooler | Tri-X (Triple Fan) |
| Power Connectors | 2 x 8-pin PCIe |
| Recommended PSU | 700W or higher |
| Software | Drivers & Utility Software included |

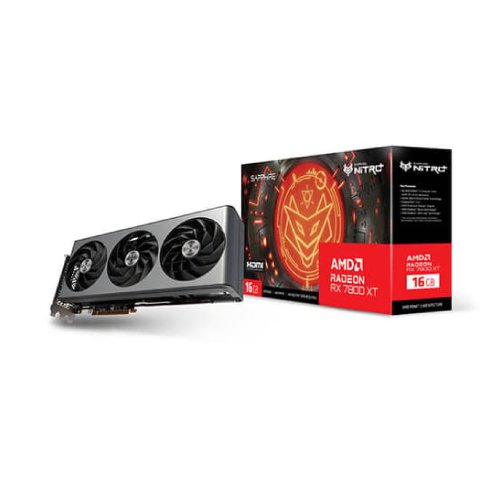

| Package Contents | Graphics Card, User Manual |
| Warranty | 2 Years |
| Note | Features, price, and specifications are subject to change without notice. |
Graphics Card
| Brand | SAPPHIRE |
| Stock Status | IN STOCK |
| Chipset | AMD RADEON |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Connectivity | DISPLAY PORT |
| Connectivity | HDMI |
| PCI Express | 4.0 |
| GPU | RX 7800 XT |
