Pre-installed RGB Fans: The case comes equipped with two pre-installed F140 RGB Core fans and two F120Q Quiet Airflow fans. These fans not only provide efficient cooling but also add vibrant RGB lighting to the interior of the case.
Dedicated GPU Cooling: A dedicated fan positioned on the bottom inside panel is angled to specifically cool the GPU. This targeted cooling ensures that the graphics card operates at optimal temperatures, enhancing its performance and longevity.
Optimal Ventilation: The perforated front panel allows for optimal ventilation, ensuring that cool air can easily enter the case while hot air is efficiently expelled. This design contributes to maintaining lower temperatures within the case, crucial for high-performance components.
Intuitive Cable Management: The case features an intuitive cable management system with wide channels, hooks, and straps. This system makes it easy to route and organize cables, reducing clutter and improving airflow within the case.

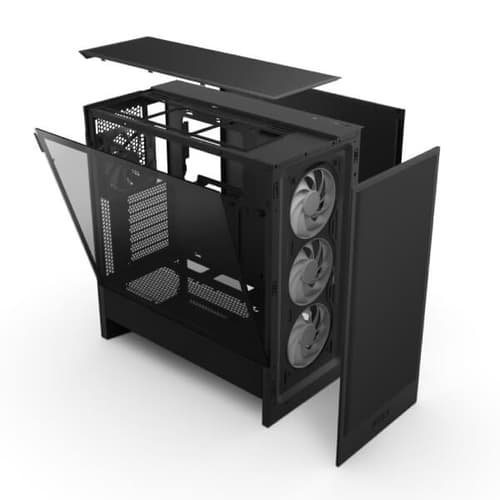

Tool-less Access: Accessing the internal components is made convenient with tool-less access to both the front and side panels. This feature simplifies maintenance and upgrades, allowing users to easily swap out components as needed.
Flexible Fan and Radiator Support: The front panel supports up to two 140mm fans or a 280mm radiator, while the top panel supports up to two 120mm fans or a 240mm radiator. This flexibility enables users to customize their cooling setup according to their specific requirements.
Compatibility with ARGB Header: The case allows for easy connectivity of multiple F140 RGB Core fans to a 5V ARGB header on the motherboard. This enables synchronized RGB lighting effects across all connected fans, enhancing the visual appeal of the build.
Overall, the H5 Flow RGB offers a combination of advanced cooling capabilities, convenient features, and customizable RGB lighting, making it an ideal choice for various PC builds.
Case Specifications
| Specification | Value |
|---|---|
| Model Number | CC-H51FB-R1 |
| Key Specs | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type | Mid-Tower |
| Case Material (Black) | SGCC Steel, Dark Tinted Tempered Glass |
| Fan Support | |
| Front | 2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included) |
| Top | 2 x 120mm |
| Rear | 1 x F Series Quiet 120mm (Case Version) included |
| Bottom | 1 x F Series Quiet 120mm (Case Version) included |
| Filters | All Air Intakes |
| Dimensions | |
| Height (With Feet) | 464mm |
| Height (Without Feet) | 448mm |
| Width | 227mm |
| Depth | 446mm |
| Weight | 7.36 kg |
| Radiator Support | |
| Front | Up to 280mm |
| Top | Up to 240mm |
| Rear | Up to 120mm |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | Up to 165mm |
| Max GPU Clearance | Up to 365mm |
| Front Radiator Clearance | 45mm |
| Cable Management | Up to 23mm |
| PSU Clearance | Up to 185mm |
| Fan Specs (F140 RGB Core Fan) | |
| Model | F140 RGB Core Fan (Case Version) |
| Speed | 1200 ± 120 RPM |
| Airflow | 61.74 CFM |
| Static Pressure | 2.06mm-H2O |
| Noise | 29.05 dBA |
| Fan Connector | 3-pin |
| Fan Specs (F120Q Airflow Fan) | |
| Model | F120Q Airflow Fan (Case Version) |
| Speed | 1200 ± 120 RPM |
| Airflow | 62.18 CFM |
| Static Pressure | 1.05 mm-H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 1+1 |
| 3.5" | 1 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Cabinet
| Brand | NZXT |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Material | STAINLESS STEEL |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | E-ATX |
| Motherboard Size | ITX |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| LED | ARGB |
| Fan Size | 120 MM |
| Fan Size | 140 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
