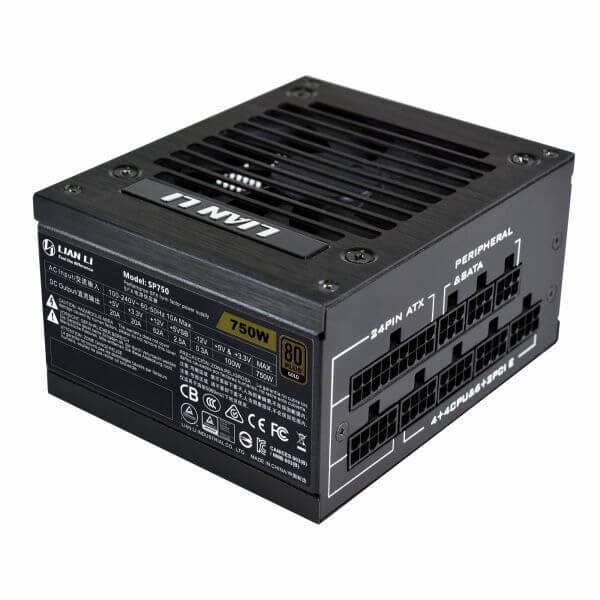

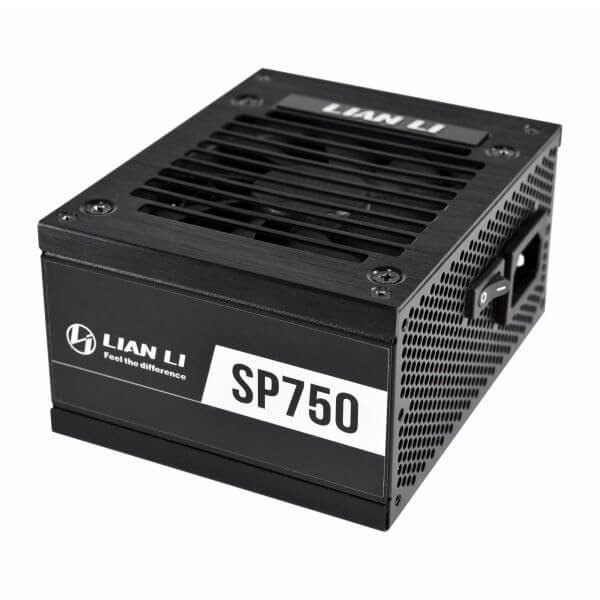

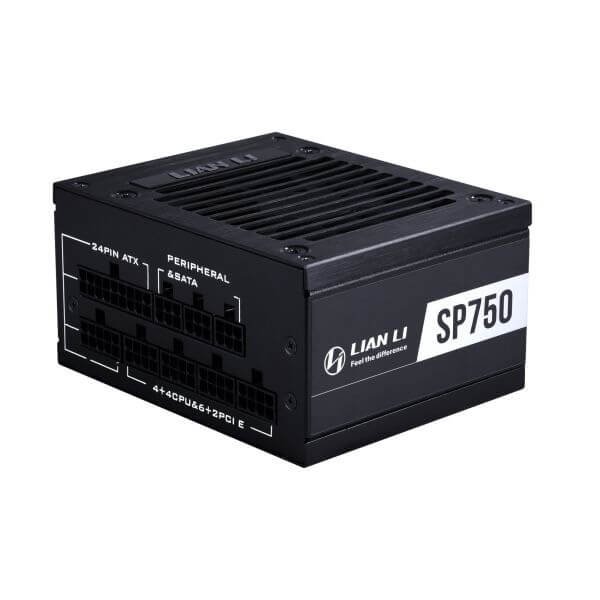

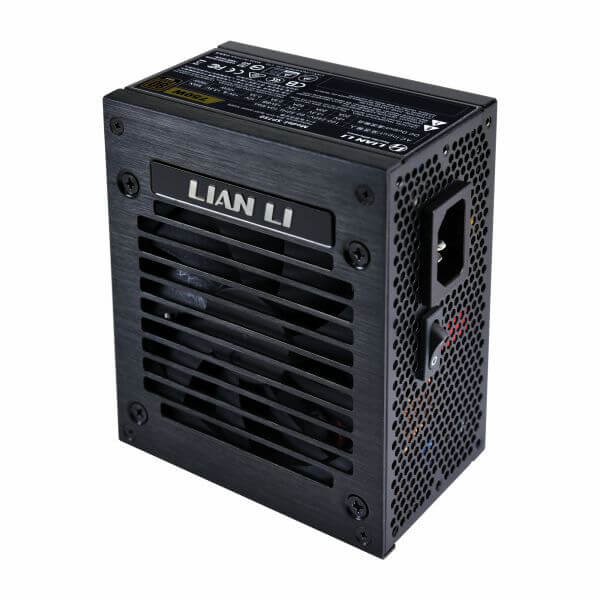

This power supply unit (PSU), the SP750, offers a range of features tailored for high-performance systems in small-form-factor PCs. Let's break down its key features:
80 PLUS GOLD Efficiency: The SP750 boasts an 80 PLUS GOLD certification, ensuring up to 92% efficiency. This means less power wastage and reduced electricity costs over time.
Fully Modular Braided Cables: With fully modular cables and braided designs, this PSU allows for a clean and organized build. You can easily connect only the cables you need, reducing clutter and improving airflow for optimal cooling.

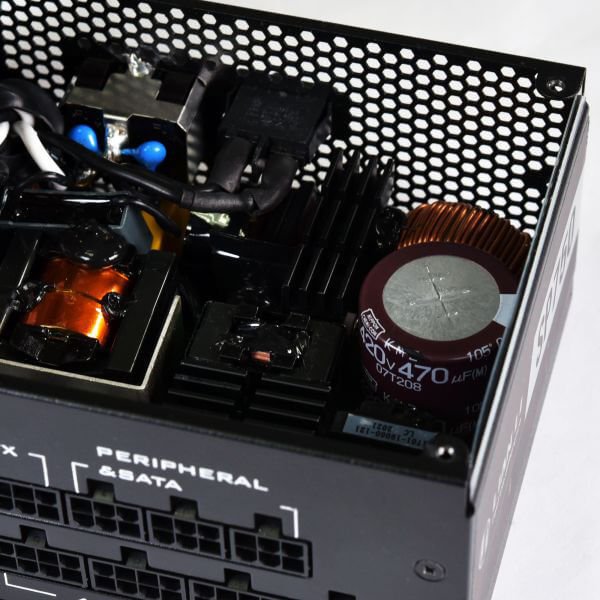

Japanese Electrolytic Capacitors: The PSU is equipped with premium Japanese electrolytic capacitors, known for their high durability and reliability. These capacitors ensure stable power delivery, enhancing system performance and longevity.

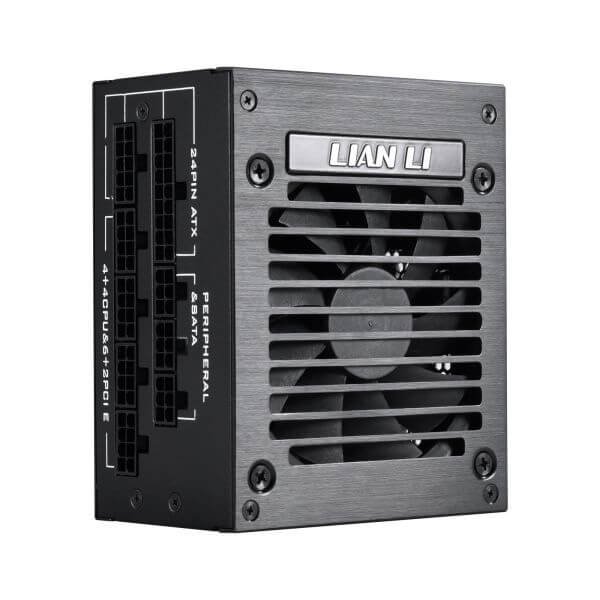

ZERO RPM Mode: To maintain silent operation, the SP750 features a 92mm hydraulic bearing fan that remains off until the system load exceeds 40%. This zero RPM mode minimizes noise levels, ideal for users who prioritize a quiet computing environment.
Sleek Aluminum Housing: Sporting a sleek and classic design, the PSU's brushed aluminum housing adds a touch of elegance to any build. Its visual identity complements LIAN LI cases, creating a cohesive and stylish aesthetic.
Performance SFX Form Factor: Designed specifically for small-form-factor PCs, the SP750 delivers high performance without sacrificing space efficiency. It's capable of powering even power-hungry components commonly found in compact builds.
Overall, the SP750 is not only a reliable and efficient power source but also a stylish addition to any small-form-factor PC setup. Its blend of performance, efficiency, and aesthetics makes it an attractive choice for enthusiasts and builders alike.
SP750 Power Supply Specifications
| Specification | Details |
|---|---|
| Model | SP750 |
| Dimensions | (D)100 mm x (W)63.5mm x (H)125 mm |
| Power Supply Design | Fully modular |
| Color | Black |
| Material | Steel/brushed aluminum housing |
| Form Factor | SFX |
| Certification | 80 PLUS Gold |
| Max. DC Output | 750W |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 744W |
| Input Voltage | 100 – 240 Vrms |
| Input Frequency Range | 50Hz – 60 Hz |
| PFC | Active PFC (PF)>0.90 at full load |
| Efficiency | 91.89% Max |
| Protective Circuit | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| Connectors | 1x 24 / 20-Pin motherboard connector (300mm) 1x 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) 1x 8 / 6+2 Pin PCIe connector (400mm) 1x 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) 2x SATA connector (120mm-120mm-120mm-120mm) 1x 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) |
| Noise Level | 31.8 dBA Max |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Warranty | 5 Years |
| Note | Features, Price and Specifications are subject to change without notice |
