The features of this power supply unit (PSU) are designed to enhance its performance, reliability, and safety:
80 PLUS Bronze Certification: This ensures that the PSU operates with at least 85% efficiency at 50% load. Higher efficiency means less wasted energy, reduced heat output, and quieter fan operation.
Reliable Flat Cable: The flat cable design reduces cable clutter inside the computer case, which improves airflow. This not only helps with cooling but also makes cable management easier during system builds.
120mm Silent Hydraulic Bearing Fan: The fan is designed for quiet operation and efficient cooling. The use of a Hydraulic Bearing extends its lifespan and ensures stable performance. Additionally, the fan speed adjusts automatically based on power demand, further reducing noise levels.
Single +12V Rail: A single +12V rail design offers stable power output and compatibility with various hardware configurations. It simplifies cable management and is particularly advantageous for overclocking, where stable power delivery is crucial.
Protection Features: The PSU includes multiple protection mechanisms such as Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), and Over Temperature Protection (OTP). These safeguards help prevent damage to the PSU and connected components, ensuring stable operation under different conditions.
Warranty: The PSU comes with a 3-year warranty (adjustable according to regions), providing assurance of its quality and reliability.
By combining these features, this PSU aims to deliver efficient, reliable, and safe power supply for computer systems, catering to the needs of both general users and enthusiasts who demand high performance and stability.
Power Supply Specifications
| Specification | Details |
|---|---|

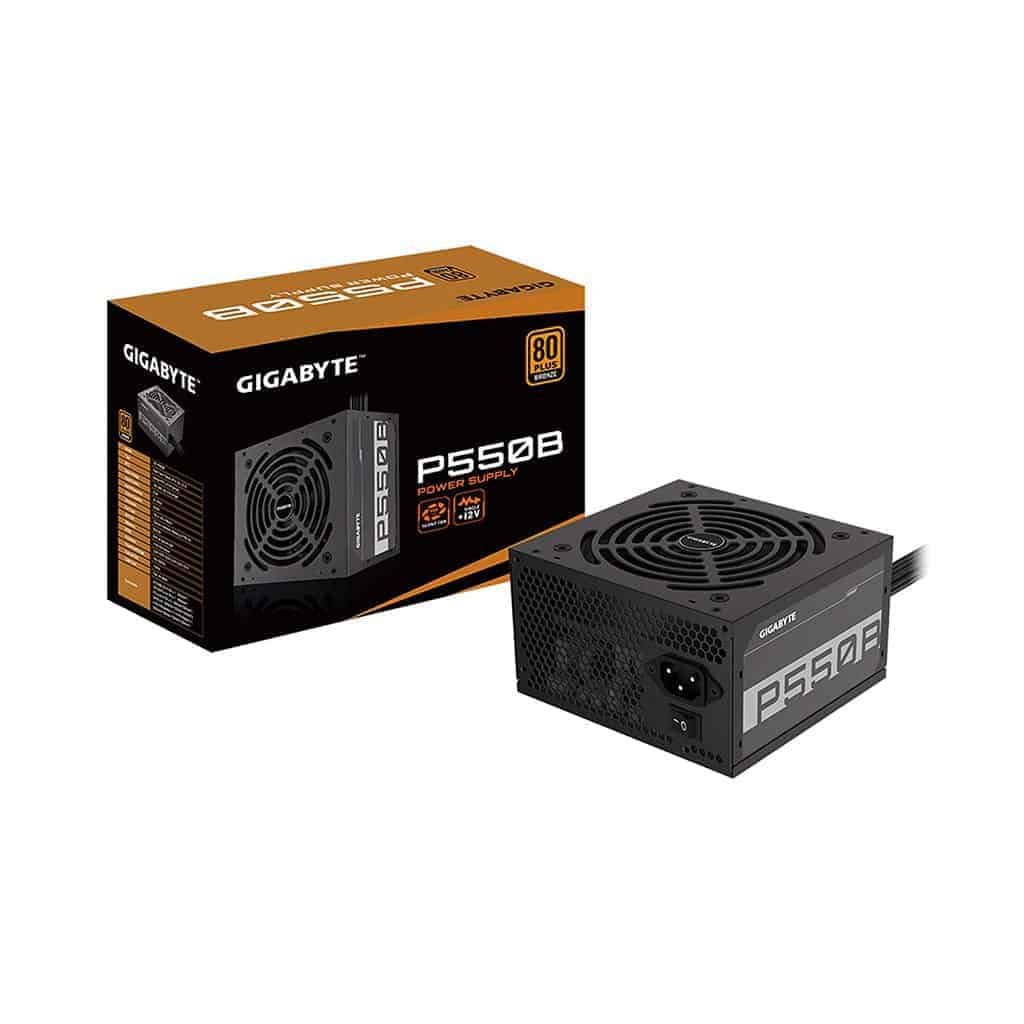

| Model | P550B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 8-4 A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 550W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120 mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Bronze |
| Efficiency | 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All black |
| Connectors |
- ATX/MB 20+4 Pin x 1 : 550mm - CPU/EPS 4+4 Pin x 1 : 600mm - PCI-e 6+2 Pin x 2 : 550mm+150mm - SATA x 6 : 500mm+120mm+120mm*2 - 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1 |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Shipping Cost |
|
| Shop Location |
