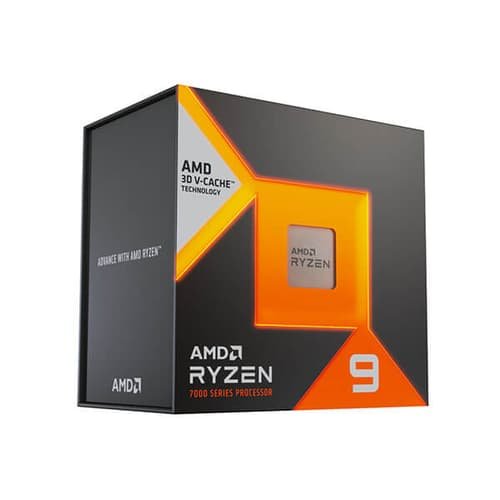

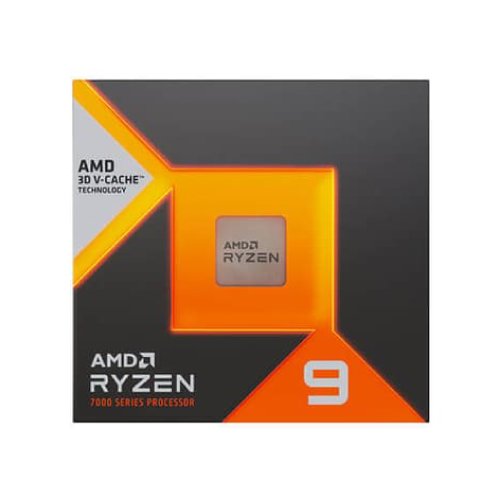

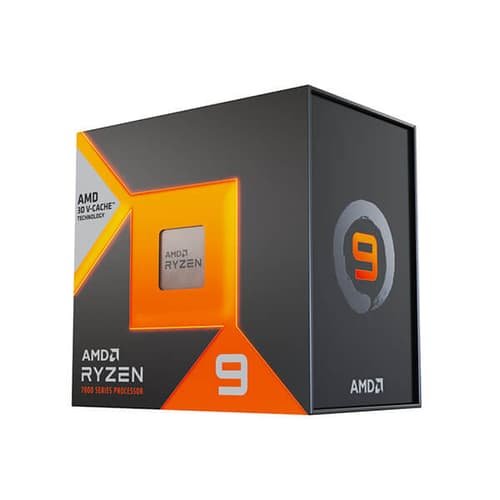

| Model |
100-100000589WOF |
| Platform |
Desktop |
| Market Segment |
Enthusiast Desktop |
| Product Family |
AMD Ryzen™ Processors |
| Product Line |
AMD Ryzen™ 9 Desktop Processors |
| AMD PRO Technologies |
No |
| Consumer Use |
Yes |
| Regional Availability |
Global |
| Former Codename |
Raphael AM5 |
| Architecture |
Zen 4 |
| # of CPU Cores |
12 |
| Multithreading (SMT) |
Yes |
| # of Threads |
24 |
| Max. Boost Clock |
Up to 5.6GHz |
| Base Clock |
4.7GHz |
| L1 Cache |
768KB |
| L2 Cache |
12MB |
| L3 Cache |
64MB |
| Default TDP |
170W |
| Processor Technology for CPU Cores |
TSMC 5nm FinFET |
| Processor Technology for I/O Die |
TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size |
71mm² |
| I/O Die (IOD) Size |
122mm² |
| Package Die Count |
3 |
| Unlocked for Overclocking |
Yes |
| AMD EXPO™ Memory Overclocking Technology |
Yes |
| Precision Boost Overdrive |
Yes |
| Curve Optimizer Voltage Offsets |
Yes |
| AMD Ryzen™ Master Support |
Yes |
| CPU Socket |
AM5 |
| Supporting Chipsets |
|
| - A620 |
|
| - X670E |
|
| - X670 |
|
| - B650E |
|
| - B650 |
|
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) |
Not included |
| Max. Operating Temperature (Tjmax) |
95°C |
| OS Support |
|
| - Windows 11 - 64-Bit Edition |
|
| - Windows 10 - 64-Bit Edition |
|
| - RHEL x86 64-Bit |
|
| - Ubuntu x86 64-Bit |
|
| *Operating System (OS) support will vary by manufacturer. |
|
| Connectivity |
|
| USB Type-C Support |
Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
| Native USB 2.0 (480Mbps) Ports |
1 |
| Native SATA Ports |
0 |
| Native PCIe Lanes (Total/Usable) |
28/24 |
| Additional Usable PCIe Lanes from Motherboard |
|
| - AMD X670E 12x Gen4 |
|
| - AMD X670 12x Gen4 |
|
| - AMD B650E 8x Gen4 |
|
| - AMD B650 8x Gen4 |
|
| NVMe Support |
Boot, RAID0, RAID1, RAID10 |
| Memory Channels |
2 |
| Max. Memory |
128GB |
| System Memory Subtype |
UDIMM |
| Max Memory Speed |
|
| - 2x1R DDR5-5200 |
|
| - 2x2R DDR5-5200 |
|
| - 4x1R DDR5-3600 |
|
| - 4x2R DDR5-3600 |
|
| ECC Support |
Yes (Requires mobo support) |
| Graphics Capabilities |
|
| Integrated Graphics |
Yes |
| Graphics Model |
AMD Radeon Graphics |
| Graphics Core Count |
2 |
| Graphics Frequency |
2200 MHz |
| USB Type-C DisplayPort Alternate Mode |
Yes (Requires mobo support) |
| Key Features |
|
| Supported Technologies |
AMD EXPO™ Technology |
| AMD Ryzen™ Technologies |
|
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
