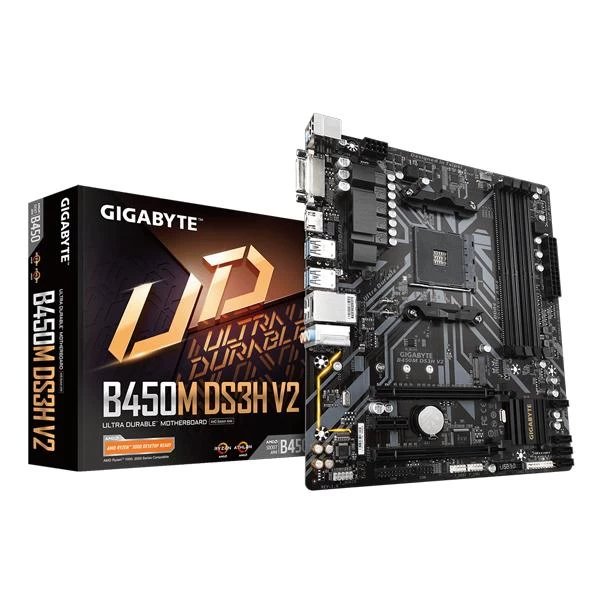

The AMD B450 Ultra Durable Motherboard offers a range of features tailored for performance, durability, and user convenience. Here's an explanation of its key features:
Digital VRM Solution:
The motherboard employs a Digital VRM (Voltage Regulator Module) solution, which provides precise and stable power delivery to the CPU, enhancing overall system performance and efficiency. GIGABYTE Gaming LAN with Bandwidth Management:
The motherboard is equipped with GIGABYTE's exclusive Gaming LAN solution, which prioritizes gaming traffic for reduced latency and smoother online gaming experiences. The bandwidth management feature helps optimize network usage for improved performance. PCIe Gen3 x4 M.2:
It features an ultra-fast PCIe Gen3 x4 M.2 slot, supporting both PCIe NVMe and SATA SSDs for high-speed storage solutions, improving system responsiveness and data transfer rates. Anti-Sulfur Resistor:
The inclusion of anti-sulfur resistors enhances the durability and longevity of the motherboard by protecting against sulfide gas corrosion in high-sulfur environments. RGB LED Strip Header:
The motherboard comes with an RGB LED strip header, allowing users to customize their system's lighting with compatible RGB LED strips, enhancing aesthetics and personalization. CEC 2019 Ready:
Compliant with CEC (California Energy Commission) 2019 standards, the motherboard offers power-saving features, enabling users to reduce power consumption with a simple click, contributing to energy efficiency. CPU Compatibility:
Supports a wide range of AMD Ryzen processors, including Ryzen 5000 series, 3rd Gen Ryzen, 2nd Gen Ryzen, and 1st Gen Ryzen, as well as Ryzen processors with Radeon Vega Graphics and Athlon processors with Radeon Vega Graphics. Memory Support:
Supports dual-channel DDR4 memory configuration with four DIMM slots, providing flexibility and compatibility for memory modules. Non-ECC unbuffered memory modules ensure reliable performance. Multiple Display Connectivity:
Features HDMI and DVI-D ports for multiple display configurations, allowing users to connect monitors or displays for versatile usage scenarios. High-Quality Audio Capacitors and Audio Noise Guard:
High-quality audio capacitors and audio noise guard with LED trace path lighting enhance audio output quality, providing an immersive gaming and multimedia experience. RGB Fusion Support: RGB Fusion software supports RGB LED strips in 7 colors, enabling users to synchronize and customize their system's RGB lighting for a visually stunning setup. Smart Fan 5: Smart Fan 5 technology includes five temperature sensors and two hybrid fan headers with FAN STOP functionality, allowing for efficient cooling management and quieter operation. APP Center: The APP Center offers various utilities, including EasyTune™ for system overclocking and optimization, and Cloud Station™ for remote management and synchronization, enhancing user convenience and system management capabilities.
AMD B450 Ultra Durable Motherboard Specifications
| Specification | Details |
|---|---|
| CPU | Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Supports DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Supports Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz (The DVI-D port does not support D-Sub connection by adapter.) - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.0 version and HDCP 2.2.) Maximum shared memory of 16 GB (Note) Actual support may vary by CPU. |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Expansion Slots | - 1 x PCI Express x16 slot, running at x16 (PCIEX16) (For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 1 x PCI Express x16 slot, running at x4 (PCIEX4) - 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU. |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) (Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.) - 4 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, and RAID 10 |
| USB | Chipset: - 2 x USB 3.1 Gen 1 ports available through the internal USB header - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: - 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x M.2 Socket 3 connector - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x S/PDIF Out header - 1 x CPU cooler LED strip/RGB LED strip header - 1 x USB 3.1 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) - 1 x serial port header - 1 x Clear CMOS jumper |
| Back Panel Connectors | - 1 x PS/2 keyboard/mouse port - 1 x DVI-D port - 1 x HDMI port - 4 x USB 3.1 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control (Whether the fan speed control function is supported will depend on the cooler you install.) |
| BIOS | - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Support for APP Center (Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) - @BIOS - EasyTune - Fast Boot - Game Boost - ON/OFF Charge - RGB Fusion - Smart Backup - System Information Viewer - Support for Q-Flash - Support for Xpress Install |
| Bundled Software | - Norton® Internet Security (OEM version) - cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
