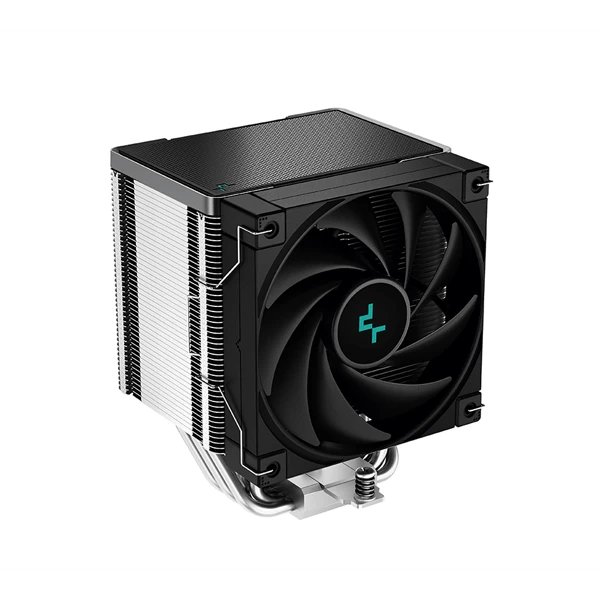

The Deepcool AK500 is a 120mm CPU air cooler designed to efficiently dissipate heat from your processor. It's part of Deepcool's lineup of cooling solutions aimed at providing effective thermal management for desktop computers.
Here are some features commonly associated with the Deepcool AK500:
The cooler likely features a 120mm fan, which is a common size for CPU coolers. This fan is responsible for moving air through the heatsink to dissipate heat from the CPU.
The heatsink is typically made of aluminium, which is lightweight and has good thermal conductivity. The design of the heatsink allows for efficient heat dissipation.
Many CPU air coolers, including the AK500, use direct contact heat pipes. These heat pipes make direct contact with the CPU's heat spreader, improving heat transfer from the CPU to the heatsink.
The cooler is likely compatible with a variety of CPU sockets, including popular ones like Intel LGA 115x and AMD AM4.
Deepcool often focuses on providing efficient cooling solutions while keeping noise levels low. The AK500 features a quiet fan design or other noise-reducing features to maintain a peaceful computing environment.
Deepcool typically designs its coolers with user-friendly installation procedures. This can include features like tool-free mounting systems or clear instructions to simplify the installation process.
While specific performance metrics depend on factors like your CPU and system configuration, the AK500 is generally designed to offer efficient cooling performance for mid-range to high-end processors, allowing for better thermal management and potentially higher overclocking capabilities.
| Specification | Value |
|---|---|
| Model Number | R-AK500-BKNNMT-G |
| Product Dimensions | 127×117×158 mm |
| Application For |
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD: AM5/AM4 |
| Heatsink Dimensions | 127×90×158 mm |
| Net Weight | 1040 g |
| Heatpipe | Ø6 mm×5 pcs |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤31.5 dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Speed (with LSP) | 500~1550 RPM±10% |
| Fan Airflow (with LSP) | 52.24 CFM |
| Fan Air Pressure (with LSP) | 1.2 mmAq |
| Fan Noise (with LSP) | ≤25.9 dB(A) |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Connector | 4-pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| Warranty | 3 Years |
| Shipping Cost |
|
| Shop Location |
