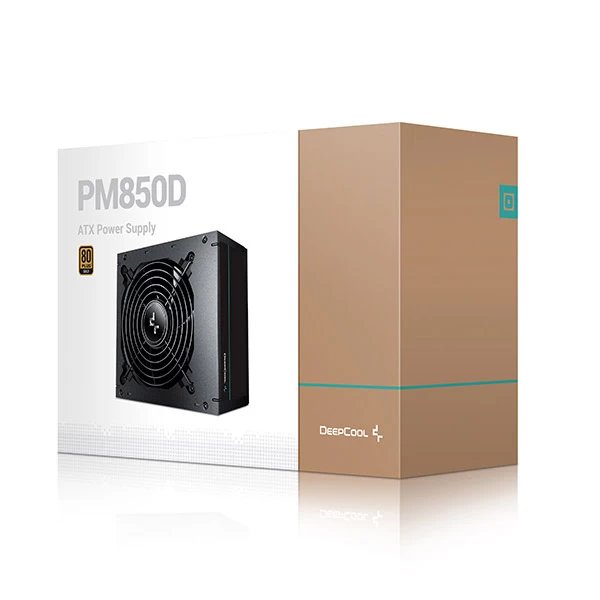

The Deepcool PM850D is a power supply unit (PSU) manufactured by Deepcool, a company known for its cooling solutions and PC components. Here are some key features and specifications you might find in the Deepcool PM850D 80 Plus Gold SMPS:
80 Plus Gold certification ensures high efficiency (90% or higher), resulting in lower energy consumption and less heat generation.
With a maximum output of 850 watts, it can handle demanding PC configurations, including high-end gaming rigs and workstations and this is the perfect companion for high-end graphics cards.
The PM850D features a modular design, allowing users to connect only the cables they need, reducing clutter and improving airflow within the PC case.
Deepcool PSUs often come equipped with quiet fans and advanced thermal management technologies to ensure minimal noise levels even under heavy loads.
Expect standard safety features such as over-voltage protection (OVP), under-voltage protection (UVP), over-power protection (OPP), over-current protection (OCP), and short-circuit protection (SCP) to safeguard your components.
It should be compatible with standard ATX cases and motherboards, making it suitable for a vast range of PC builds.
Deepcool typically offers a five-year warranty with their PSUs, providing users with peace of mind regarding the reliability and longevity of the product.
| Specification | Value |
|---|---|
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| Wattage | 850 Watt |
| PCIe Connector (6+2) | 3 |
| SATA Connector | 6 |
| Peripheral (4-Pin) | 3 |
| Warranty | 5 Years |
