The ASUS Prime AP201 offers a range of features designed to enhance the functionality, cooling, and aesthetics of your PC build:
Quasi-Filter Mesh Panels: The case features mesh panels with over 57,000 precision-machined holes, promoting airflow and providing a clear view of your components. This design not only improves cooling but also adds to the visual appeal of your build.
Optimized for Cooling: With support for 280mm and 360mm radiators and up to six fans, the AP201 is equipped to handle the heat generated by high-performance hardware. This ensures that your components remain cool even under heavy loads.
Industry-Leading Spatial Efficiency: Despite its compact 33L footprint, the case can accommodate ATX PSUs up to 180mm long, graphics cards up to 338mm long, custom liquid cooling solutions, and various storage devices. This efficient use of space allows for a powerful and versatile build.
Tool-Free Side Panels: The case features tool-free side panels with a secure clip mechanism, making it easy to access your components for maintenance or upgrades. The panels are designed to stay in place securely, minimizing the risk of accidental dislodging.

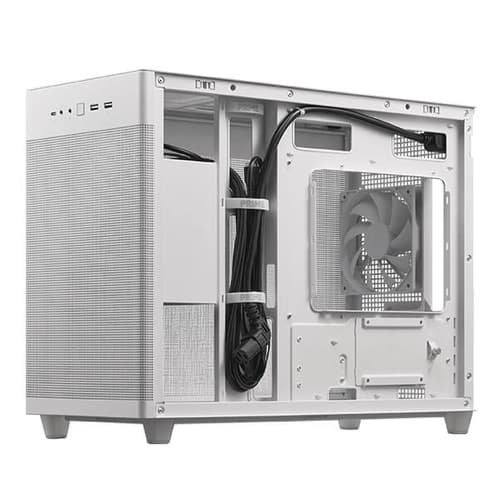

Sizeable Cable Management: An extended motherboard tray with strategically placed cutouts and a 32mm gap allows for tidy cable management. This helps keep your build organized and maximizes airflow within the case.
Front Panel USB Type-C Support: The front panel of the case includes a USB 3.2 Gen 2 Type-C port, offering high-speed data transfer rates of up to 10 Gbps. This allows for convenient connectivity of modern devices and peripherals.
Overall, the ASUS Prime AP201 combines innovative design features with practical functionality to create an ideal chassis for building a high-performance PC system.
| Specification Details | __parsed_extra |
|---|---|
| Model | AP201 |
| Motherboard Compatibility Micro-ATX | Mini-ITX |
| Color | White |
| Dimension (WHD) | 205 x 350 x 460 mm (33L) |
| Weight | 7 kg |
| Materials Steel | Plastic/Steel, Plastic |
| I/O Ports 2 x USB 3.2 Gen1 | 1 x USB 3.2 Gen 2 (Type-C), 1 x Headphone, 1 x Microphone |
| 3.5"/2.5" Drive Bays | 3 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 |
| Vertical VGA | NA |
| Maximum GPU Length | 338 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 140-180 mm |
| Radiator Compatibility Top: 120/140/240/280/360 mm | Rear: 120 mm |
| Cooling Support Top: 2 x 140mm / 3 x 120mm | Rear: 1 x 120 mm, Bottom: 2 x 120 mm |
| Pre-installed Fans Rear: | 1 x 120 mm |
| Removable Dust Filters | Bottom |
| Cable Routing Max. | 32mm |
| Warranty | 1 Year |
| Note *** Features | Price, Specifications are subject to change without notice. |
Cabinet
| Brand | ASUS |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Cabinet Size | MINI-TOWER |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| LED | WHITE |
| Fan Size | 120 MM |
| Fan Size | 140 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
