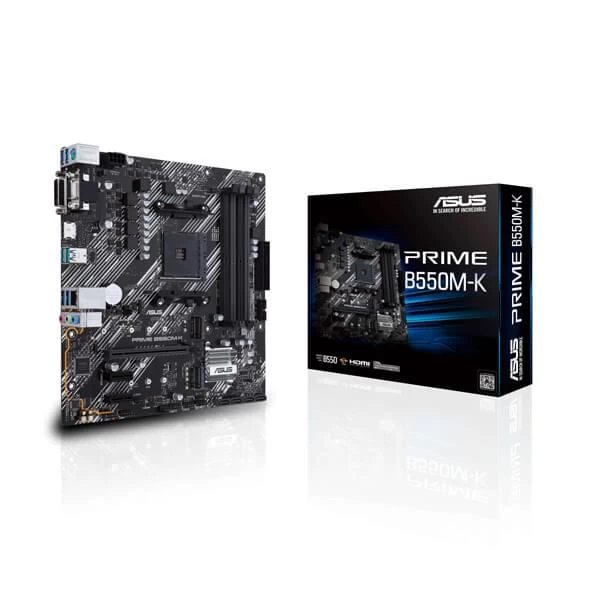

the features of the AMD B550 micro ATX motherboard:
AMD B550 Chipset (Ryzen AM4): Designed for compatibility with Ryzen™ 5000 Series, 4000 G-Series, and 3000 Series Desktop Processors from AMD.
Dual M.2 Support: Allows for the installation of two M.2 SSDs, offering fast storage options and reducing cable clutter on the motherboard.
PCIe 4.0: Offers high-speed data transfer and enhanced performance for PCIe devices such as graphics cards and NVMe SSDs.
1 Gb Ethernet: Provides reliable wired network connectivity for high-speed data transfer and online gaming.
HDMI/D-Sub/DVI: Multiple display output options for connecting monitors and displays to the motherboard.
SATA 6 Gbps: Supports up to 6 SATA devices for storage expansion and data transfer.
USB 3.2 Gen 2 Type-A: High-speed USB ports for fast data transfer rates and connectivity with compatible devices.
Comprehensive Cooling: Includes a PCH (chipset) heatsink and support for Fan Xpert 2+ for effective cooling of critical components, ensuring stable system performance under heavy workloads.
Ultrafast Connectivity: Features dual M.2 slots, PCIe 4.0 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A ports, providing fast data transfer and connectivity options for various peripherals.
5X Protection III: Incorporates multiple hardware safeguards, including circuit protection, LAN surge protection, and corrosion-resistant back I/O, to ensure overall system reliability and longevity.
| Component Details | __parsed_extra |
|---|---|
| CPU Socket AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset AMD B550 | |
| Memory - AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 4 x DIMM | Max. 128GB, DDR4 (Listed speeds are supported with overclocking) |
| - AMD RyzenTM 4000 G-Series Processors: 4 x DIMM | Max. 128GB, DDR4 (Listed speeds are supported with overclocking) |
| Graphics 1 x D-Sub | 1 x DVI-D, 1 x HDMI 2.1 (Supports 4K@60Hz) |
| Expansion Slots - | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 (x16 mode) |
| - AMD RyzenTM 4000 G-Series Processors: 1 x PCIe 3.0 x16 (x16 mode) | |
| - AMD B550 Chipset: 2 x PCIe 3.0 x1 | |
| Storage - | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports |
| - M.2_1: PCIe 4.0 x4/SATA mode (for Ryzen™ 5000/3000 Series) | PCIe 3.0 x4/SATA mode (for RyzenTM 4000 G-Series) |
| - M.2_2: PCIe 3.0 x4/SATA mode | |
| - Supports RAID 0 | 1, 10 |
| LAN | Realtek RTL8111H 1Gb Ethernet |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports - Rear: 2 x USB 3.2 Gen 2 port(s) (Type-A) | 4 x USB 3.2 Gen 1 port(s) (Type-A) |
| - Front: 2 x USB 3.2 Gen 1 port(s) (Type-A) | 4 x USB 2.0 port(s) (Type-A) |
| Software Features ASUS Exclusive Software including Armoury Crate | AI Suite 3, TurboV EVO, etc. |
| Special Features ASUS 5X PROTECTION III | ASUS Q-Design, ASUS Thermal Solution, ASUS Lighting Control, etc. |
| Back I/O Ports 1 x PS/2 | 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 3 x Audio jacks |
| Internal I/O Ports Various internal connectors including CPU and Chassis Fan connectors | USB headers, etc. |
| BIOS 256 Mb Flash ROM | UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor mATX Form Factor | 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note Features | Price, and Specifications are subject to change without notice. |
