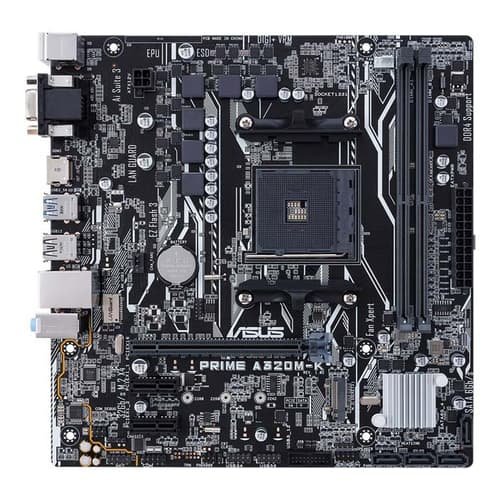

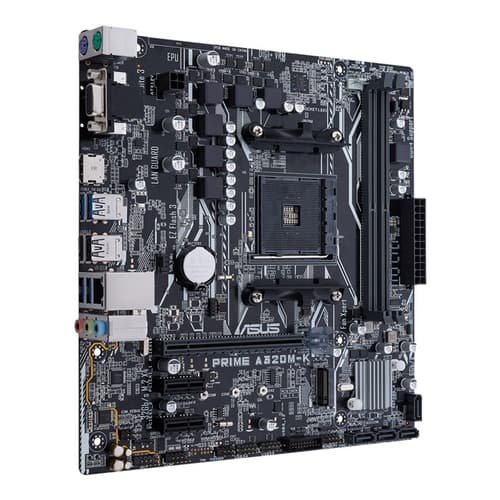

Name: Asus Prime A320M-K Gaming Motherboard
Brand: Asus
Price: 4300 INR
Availability: InStock
Rating: 5 (1 reviews)

Asus Prime A320M-K Gaming Motherboard

Reviews (0)

0 0 6

₹4,300 ₹8,800

-51%

Availability

In Stock

Product Code

PRIME-A320M-K

Brand

Asus

Description

Processor Compatibility: The motherboard is compatible with AMD® Ryzen™ AM4 processors and 7th generation Athlon™ processors. This compatibility ensures that users can choose from a range of processors to suit their performance needs.

Connectivity and Speed: The motherboard maximizes connectivity and speed with NVMe M.2 support, which allows for high-speed data transfer with compatible storage devices. It also supports up to 32GB of DDR4 RAM, USB 3.1 ports for fast data transfer, and Gigabit LAN for high-speed network connectivity.

5X Protection III: This feature provides hardware-level safeguards to ensure the longevity and reliability of components. It includes measures to protect against overvoltage, overcurrent, and other potential hazards, enhancing the durability of the motherboard.

SafeSlot Core PCIe Slot: This is a patented feature designed to fortify the PCIe slot, which prevents damage from heavyweight GPUs (Graphics Processing Units). It ensures that even heavy graphics cards are securely and safely installed, reducing the risk of damage to the motherboard.

FanXpert: This feature delivers advanced fan controls, allowing users to optimize cooling performance according to their preferences. It enables users to adjust fan speeds and profiles to maintain optimal temperatures for components, ensuring efficient cooling and potentially extending the lifespan of the hardware.

8-Channel HD Audio: The motherboard features industry-leading 8-channel HD audio, driven by Japanese capacitors. This ensures high-quality audio output for an immersive listening experience. Additionally, the onboard LED-illuminated design adds a visually appealing touch to the motherboard.

Overall, these features combine to provide users with a motherboard that offers high performance, reliability, and flexibility for various computing needs, from gaming to content creation.

SPECIFICATIONS

CPU	AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores
Chipset	AMD A320
Memory	AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic	Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1 Multi-VGA output support : HDMI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB
Expansion Slots	AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 2 x PCIe 2.0 x1
Storage	AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC
USB Ports	AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.0 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.0 port(s) (2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
Operating System Support	Windows® 10 , 64bit

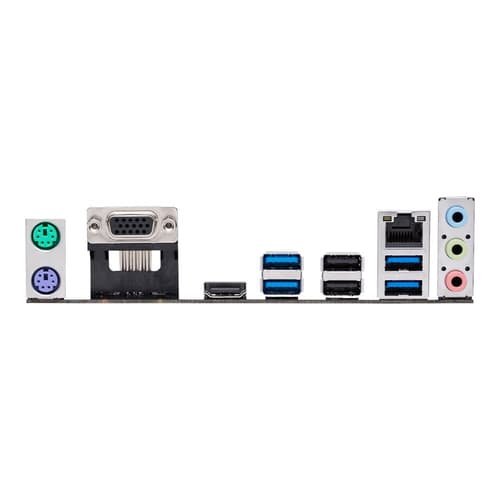

Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Warranty	3 Years
Note	***Features,Price and specifications are subject to change without notice.
Additional Note	*Note: To support Renoir & Vermeer processors (AMD 4000 G series APU & 5000 series CPU), BIOS needs to be updated to BIOS version 5862. But due to hardware/firmware limitation, this new BIOS doesn’t support Bristol Ridge processors.
