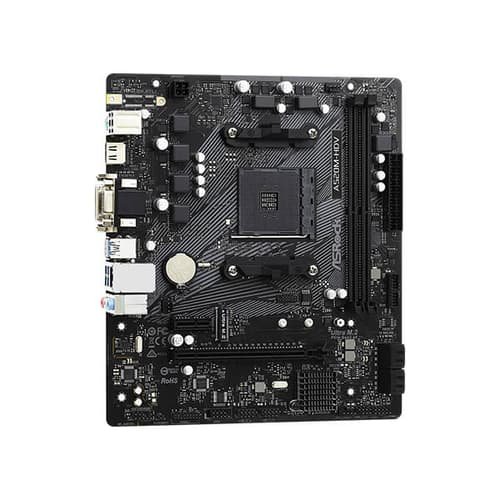

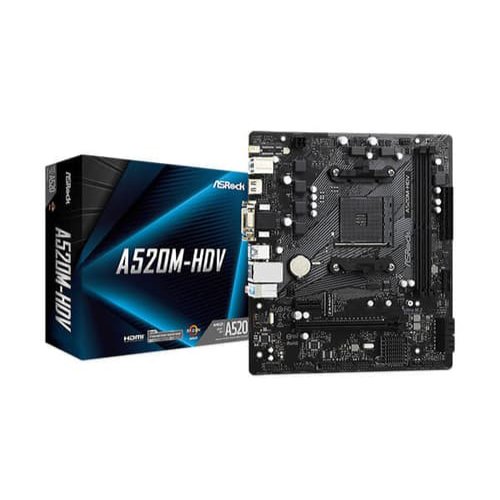

The Asrock A520M-HDV is a micro-ATX motherboard designed for AMD Ryzen processors, offering a range of features to support high-performance computing needs. Let's break down its features:

Processor Support: The motherboard supports 3rd Gen AMD AM4 Ryzen processors as well as future AMD Ryzen processors from the 3000 and 4000 series, ensuring compatibility with a wide range of CPUs for different performance needs.

Power Design: It features a 6 Phase Power Design, which helps ensure stable power delivery to the CPU and other components, enhancing overall system performance and reliability.

Memory Support: The motherboard supports DDR4 memory with speeds of up to 4733+ MHz when overclocked, allowing for high-speed memory configurations to optimize system performance.

Expansion Slots: It comes with one PCIe 3.0 x16 slot for high-performance graphics cards and one PCIe 3.0 x1 slot for additional expansion cards, such as sound cards or networking cards.

Graphics Output Options: The motherboard offers multiple graphics output options including D-Sub, DVI-D, and HDMI ports, providing flexibility for connecting displays based on user preferences and requirements.

Audio: It features 7.1 channel HD audio powered by the Realtek ALC887 Audio Codec, delivering high-quality sound for immersive gaming and multimedia experiences.

Storage: The motherboard provides four SATA3 ports for traditional hard drives and SSDs, as well as one Ultra M.2 slot supporting both PCIe Gen3 x4 and SATA3 interfaces, enabling high-speed storage solutions.

USB Connectivity: It offers a total of six USB 3.2 Gen1 ports (four rear and two front) for high-speed data transfer, along with six USB 2.0 ports (two rear and four front) for connecting peripherals and accessories.

LAN: Equipped with Realtek Gigabit LAN, the motherboard ensures fast and reliable wired network connectivity for online gaming, streaming, and other network-intensive tasks.

Overall, the Asrock A520M-HDV motherboard combines robust features, versatile connectivity options, and reliable performance, making it a suitable choice for budget-conscious users seeking a compact yet capable platform for their AMD Ryzen-based systems.

ASRock Z790M ITX DDR5 WiFi Motherboard Specifications

Unique Features

• ASRock Super Alloy
  • Premium 50A Power Choke
  • Sapphire Black PCB
  • High Density Glass Fabric PCB
• ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

CPU

• Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)*
• 6 Power Phase design
• Note: Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

Chipset

• AMD A520

Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• Max. capacity of system memory: 64GB*
• Supports Extreme Memory Profile (XMP) memory modules
• 15μ Gold Contact in DIMM Slots
• Note: Actual support may vary by CPU

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Graphics

• Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.**
• Three graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.1
• Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
• Supports Microsoft® PlayReady
• Note: Actual support may vary by CPU
• Note: The Max shared memory 16GB requires 32GB system memory installed.

Audio

• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• Supports Surge Protection

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Slots

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
• 1 x PCI Express 3.0 x1 Slot
• Note: Supports NVMe SSD as boot disks

Storage

• 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
• Note: Supports NVMe SSD as boot disks
• Supports ASRock U.2 Kit

Connector

• 1 x SPI TPM Header
• 1 x COM Port Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• Note: The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• Note: The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

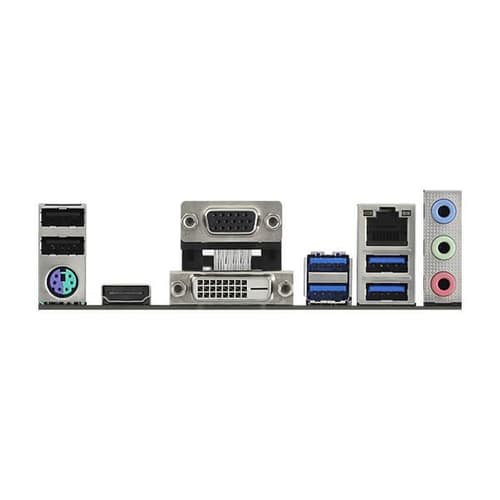

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

• Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock XFast LAN
• UEFI
  • ASRock Full HD UEFI
  • ASRock Instant Flash
• Note: These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

• Quick Installation Guide
• Support CD
• I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Hardware Monitor

• Temperature Sensing: CPU, Chassis Fans
• Fan Tachometer: CPU, Chassis Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
• Fan Multi-Speed Control: CPU, Chassis Fans
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

• Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
• Solid Capacitor design

OS

• Microsoft® Windows® 10 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty

• 3 Years

Note

• ***Features, Price and Specifications are subject to change without notice.
