Intel® H81 Chipset Support

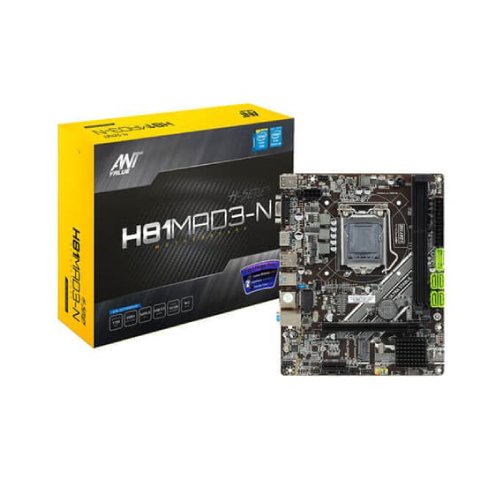

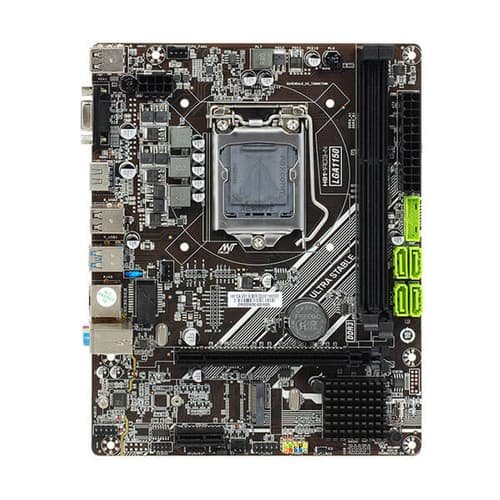

The Ant Value H81MAD3 motherboard is engineered with the Intel® H81 chipset, which provides robust support for Intel’s 4th Generation Core i3, i5, and i7 processors, utilizing the LGA1150 socket. This combination ensures compatibility with a range of high-performance CPUs, delivering reliable and efficient processing power for a variety of computing needs.

DDR3 Memory Compatibility

Equipped to handle DDR3 memory modules, the motherboard supports speeds of up to 1600 MHz and 1333 MHz. It features two DIMM slots, allowing for a flexible and efficient memory setup. With this configuration, users can achieve enhanced multitasking capabilities, smoother application performance, and a more responsive computing experience.

High-Speed Storage and Expansion

The Ant Value H81MAD3 provides four SATA III 6Gb/s ports, ensuring rapid data transfer speeds for connected storage devices. This is crucial for improving boot times, accelerating file transfers, and enhancing overall system performance. Additionally, the motherboard includes one PCI Express x16 slot, which allows for the installation of a high-performance graphics card or other expansion cards to boost system capabilities.

Comprehensive USB Connectivity

This motherboard is designed with a versatile array of USB ports to accommodate various peripherals:

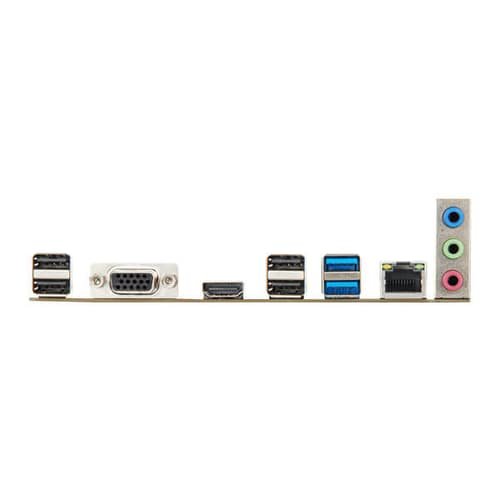

• USB 3.0 Ports: Four USB 3.0 ports (two on the back panel and one pinheader supporting two additional USB 3.0 ports) provide high-speed data transfer rates of up to 5 Gbps, which is ideal for connecting modern external devices and peripherals.
• USB 2.0 Ports: Six USB 2.0 ports (four on the back panel and one pinheader supporting two additional USB 2.0 ports) offer reliable connectivity for a wide range of devices, including keyboards, mice, and other accessories.

Audio and Networking Features

The Ant Value H81MAD3 motherboard includes essential audio and networking features:

• Audio Jacks: It provides standard audio inputs and outputs with Mic In, Line In, and Line Out jacks, ensuring clear and reliable audio for gaming, multimedia, and communication.
• Networking: Onboard Realtek® 10/100 Mbps LAN ensures stable and efficient network connectivity for everyday internet use. For users requiring faster network speeds, there is an optional 1000 Mbps LAN upgrade available.
