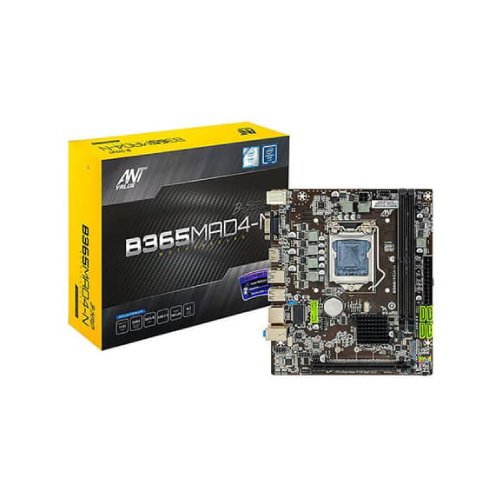

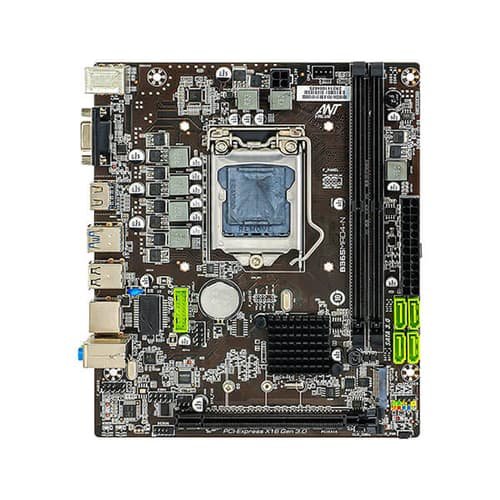

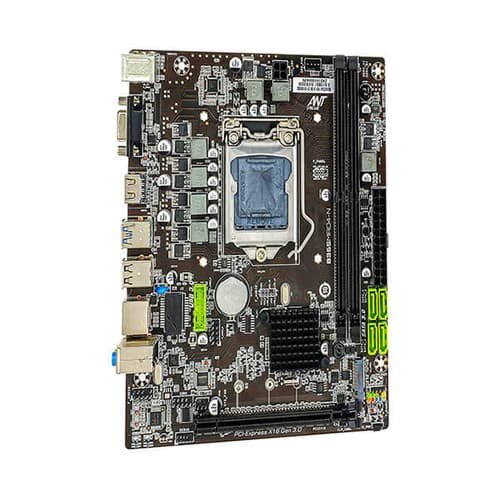

The Ant Value B365MAD4-N DDR4 Gaming Motherboard is designed to provide a stable and high-performance foundation for Intel-based gaming and productivity systems. Built around the Intel B365 chipset, this motherboard supports 8th and 9th Generation Intel Core, Pentium Gold, and Celeron processors, offering reliable performance for gaming, streaming, and everyday multitasking. Its sleek micro-ATX design ensures wide case compatibility while maintaining essential expansion and connectivity options.
Equipped with dual-channel DDR4 memory support, PCIe expansion slots, and M.2 storage compatibility, the B365MAD4-N delivers solid performance and flexibility for both entry-level and mid-range gaming PCs. The board includes high-quality components, reinforced power delivery, and durable capacitors to ensure long-term stability. With multiple USB ports, HD audio, and integrated Ethernet, it provides a complete platform for gamers and creators seeking value, reliability, and functionality in one compact design.
Key Features
-
Intel B365 Chipset:
Supports 8th and 9th Gen Intel Core, Pentium Gold, and Celeron processors for dependable everyday and gaming performance. -
Dual-Channel DDR4 Memory Support:
Accommodates up to 64GB of DDR4 RAM for faster load times and improved multitasking. -
M.2 & SATA Storage Options:
Offers flexibility with M.2 SSD and multiple SATA III ports for high-speed data transfer and storage expansion. -
PCIe Expansion Slots:
Includes full-length PCIe x16 and additional PCIe x1 slots for graphics cards and other expansion needs. -
Enhanced Power Design:
Stable VRM layout and premium capacitors ensure efficient power delivery and long-term durability. -
Comprehensive Connectivity:
Multiple USB ports, HDMI, VGA, and LAN ports for versatile device connectivity and display output. -
High-Definition Audio:
Integrated HD audio chipset delivers clear and immersive sound quality for gaming and entertainment. -
Micro-ATX Form Factor:
Compact size compatible with most mid-tower and small-form-factor PC cases.
Technical Specifications
| Specification | Value |
|---|---|
| Model Name | B365MAD4-N DDR4 Gaming Motherboard |
| Chipset | Intel B365 |
| CPU Support | 8th / 9th Gen Intel Core, Pentium, Celeron |
| Socket Type | LGA 1151 |
| Memory Support | Dual Channel DDR4 (Up to 64GB) |
| Memory Slots | 2 × DDR4 DIMM Slots |
| Storage Interface | 1 × M.2, 4 × SATA III Ports |
| Expansion Slots | 1 × PCIe x16, 2 × PCIe x1 |

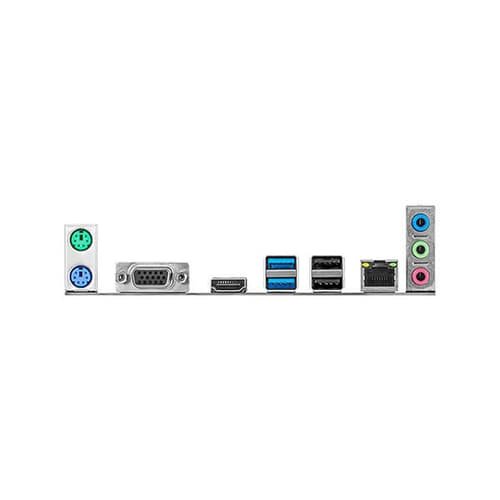

| Display Output Ports | 1 × HDMI, 1 × VGA |
| USB Ports | 4 × USB 3.0, 2 × USB 2.0 |
| LAN | 1 × Gigabit Ethernet Port |
| Audio | HD Audio (Realtek Chipset) |
| Form Factor | Micro-ATX |
| Power Connector | 24-Pin ATX + 8-Pin CPU Power |
| Storage Support | M.2 NVMe / SATA SSDs, HDDs Supported |
| Cooling Support | CPU & System Fan Headers |
| BIOS | UEFI BIOS Interface |
| Colour | Black / Silver |
| Dimensions | 226 × 185 mm (Approx.) |
| Warranty | 3 Years |
Motherboard
| Brand | ANT ESPORTS |
| Stock Status | IN STOCK |
| Chipset | B365 |
| Memory Type | DDR4 |
| Socket Support | LGA 1151 |
| Form Factor | MICRO-ATX |
| Platform | INTEL |
