Certainly! Let's break down the features of the AMD Ryzen 3 3200G Processor:
Cores and Threads:
The processor has 4 cores, which are individual processing units capable of handling tasks. It also has 4 threads, allowing each core to handle two tasks simultaneously through a technology known as Simultaneous Multithreading (SMT). Clock Speed:
The base clock speed is 3.6GHz, indicating the default operating frequency of the processor. The Max Boost Clock is up to 4GHz, which is the maximum speed the processor can achieve under optimal conditions. Cache:
It comes with a 6MB cache, which is a small but high-speed memory that the processor uses to store frequently accessed data for quicker retrieval. Thermal Design Power (TDP):
The TDP is 65W, which represents the maximum amount of power the cooling system in the computer needs to dissipate to prevent the processor from overheating. Memory Specifications:
System Memory Specification is 2933MHz, indicating the maximum speed at which the processor can communicate with the system's RAM (Random Access Memory). System Memory Type supported is DDR4, a common type of RAM used in modern computers. It supports dual-channel memory configuration with 2 Memory Channels. Socket and Motherboard Compatibility:
The processor fits into the AM4 socket on the motherboard. It is compatible with AMD 300, 400, and 500 series chipset-based motherboards, offering flexibility in choosing a motherboard for your system. Graphics:
The processor features AMD Radeon Vega 8 Graphics, providing integrated graphics capabilities. This is useful for systems that do not have a dedicated graphics card. Heatsink Fan:

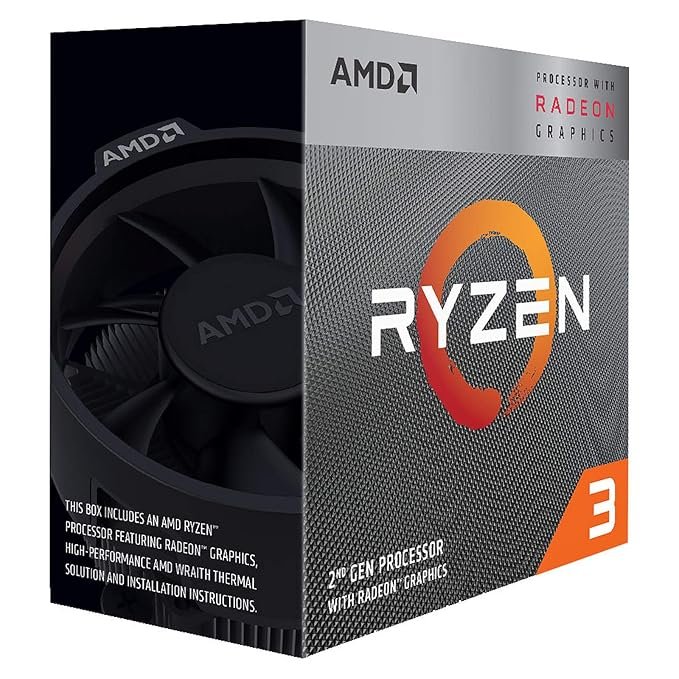

The processor comes with a Wraith Stealth heatsink fan, which is a cooling solution provided by AMD to dissipate heat generated during operation. Warranty:
The processor is backed by a 3-year warranty, providing assurance of its reliability and durability over an extended period. In summary, the AMD Ryzen 3 3200G is a quad-core processor with integrated graphics, suitable for mid-range desktop systems, offering a balance between performance and power efficiency.
| Specifications | FIELD2 |
|---|---|
| Platform | Boxed Processor |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 3 Desktop Processors with Radeon™ Vega Graphics |
| Former Codename | Picasso |
| # of CPU Cores | 4 |
| # of Threads | 4 |
| Max. Boost Clock | Up to 4.0GHz |
| Base Clock | 3.6GHz |
| L1 Cache | 384KB |
| L2 Cache | 2MB |
| L3 Cache | 4MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | 12nm FinFET |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Thermal Solution (PIB) | Wraith Stealth |
| Thermal Solution (MPK) | Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit. (OS support may vary by manufacturer.) |
| Connectivity | |
| - PCI Express® Version | PCIe® 3.0 x8 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| System Memory Specification | Up to 2933MT/s |
| Graphics Capabilities | |
| - Integrated Graphics | Yes |
| - Graphics Model | Radeon™ Vega 8 Graphics |
| - Graphics Core Count | 8 |
| - Graphics Frequency | 1250 MHz |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Graphics
| Brand | AMD |
| Stock Status | IN STOCK |
| Memory Type | DDR4 |
| CPU | RYZEN 3 |
| Cores | 4 |
| Series | 3000 SERIES |
| Max Memory Support | 64 GB |
| Integrated Graphics | RADEON VEGA 8 |
