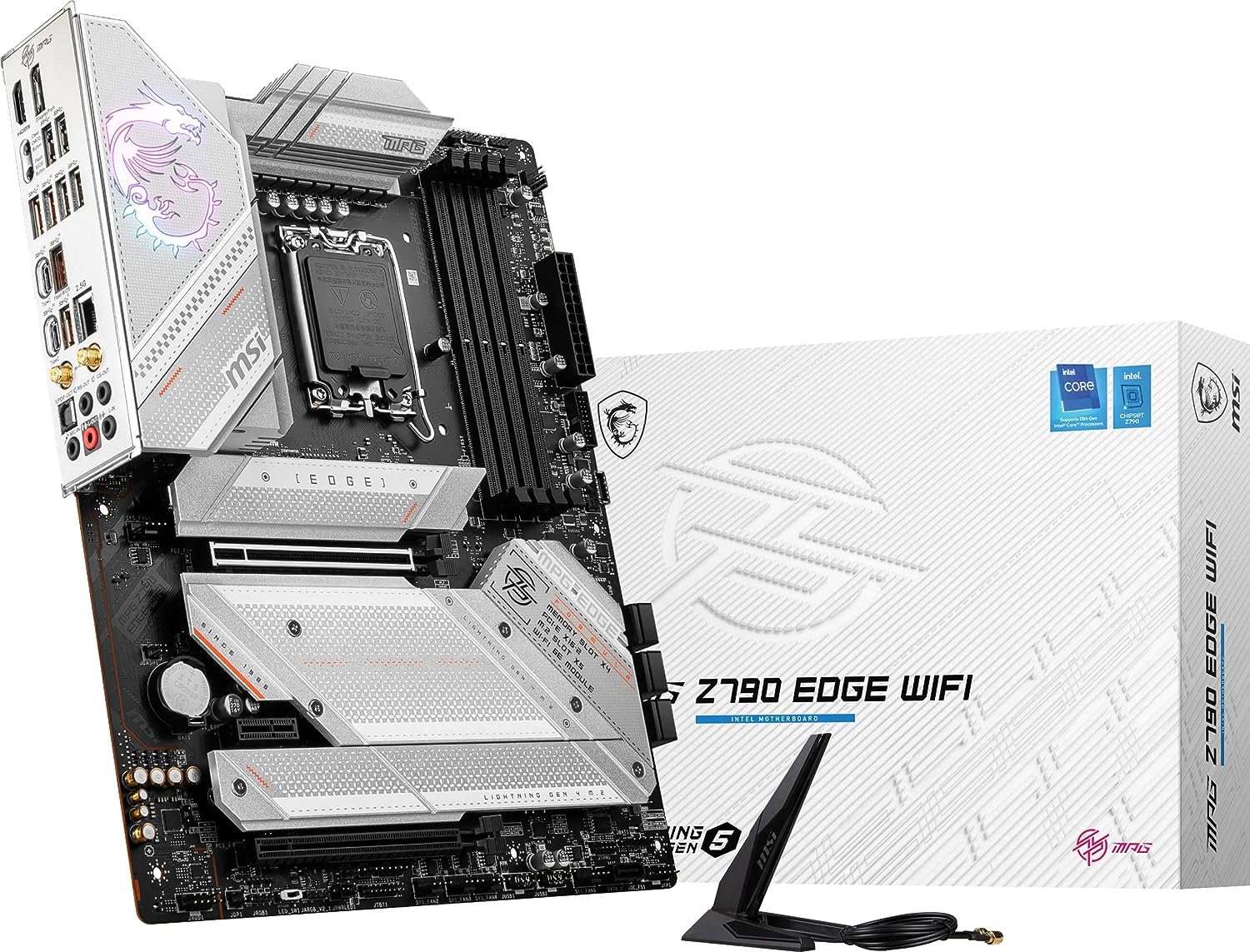

The MSI MPG Z790 Edge Ti MAX WIFI motherboard is part of MSI's MPG series, designed for high-performance gaming and enthusiast PC builds. Here are some features you might expect from this motherboard:
The Z790 Edge Ti MAX WIFI supports Intel's 12th generation Alder Lake processors, given the "Z790" chipset.
It could be in the ATX form factor, providing a balance of expansion slots and features for gaming and enthusiast builds.
The Z790 chipset supports features such as PCIe 5.0, USB 4.0, and DDR5 memory, providing high-speed connectivity and improved performance over previous generations.
With DDR5 support, you can expect faster memory speeds and potentially higher capacities compared to DDR4.
As indicated in the name, it includes built-in Wi-Fi capabilities, along with other connectivity options such as Bluetooth, Ethernet, and USB ports.
Expect multiple PCIe slots for adding graphics cards, NVMe SSDs, and other expansion cards for customization and upgrading.
MSI motherboards often include RGB lighting zones and headers for connecting additional RGB accessories, allowing users to customize the look of their build.
MSI's MPG series typically offers robust overclocking features, allowing users to push their hardware to its limits for increased performance.
MSI Z790 provides software utilities for tweaking system settings, monitoring hardware performance, and managing RGB lighting.
MSI Z790 motherboards generally feature high-quality components and robust build quality to ensure stability and longevity.
| Specifications | Value |
|---|---|
| Model | MPG Z790 EDGE TI MAX WIFI |
| Chipset | INTEL Z790 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency:
Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics |
|
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| USB |
|
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O |
|
| LED FEATURE |
|
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
