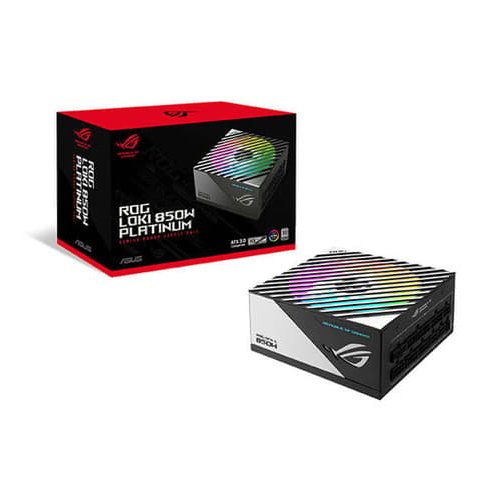

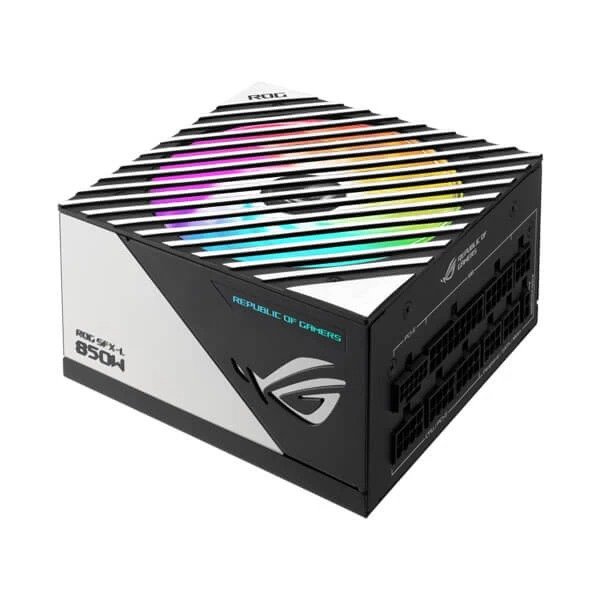

ROG Loki SFX-L 850W Platinum
The ROG Loki SFX-L 850W Platinum is engineered to be the quietest SFX-L PSU, inheriting the pedigree of the ROG Thor while compactly packing enthusiast-grade components and features. With its quiet operation and high performance, the Loki is tailored to power your next Small Form Factor (SFF) build.
- Axial-Tech Cooling: Equipped with a 120mm fan featuring PWM control, ensuring low noise and optimal thermal management.
- Compact Form Factor: SFX-L design measuring 125 x 125 x 63.5 mm, ideal for space-constrained builds.
- PCIe Gen 5.0 Ready: Includes a 16-pin cable capable of delivering up to 600W power to PCIe 5.0 graphics cards, ensuring future compatibility.
- Future Ready: Adheres to tighter voltage and current regulation standards, ensuring stability and longevity.
- Lambda A Certification: Certified for low noise levels, emitting less than 25 dB on average.
- 80 PLUS Platinum Certified: Achieves up to 92% efficiency, reducing heat generation and noise while enhancing reliability.

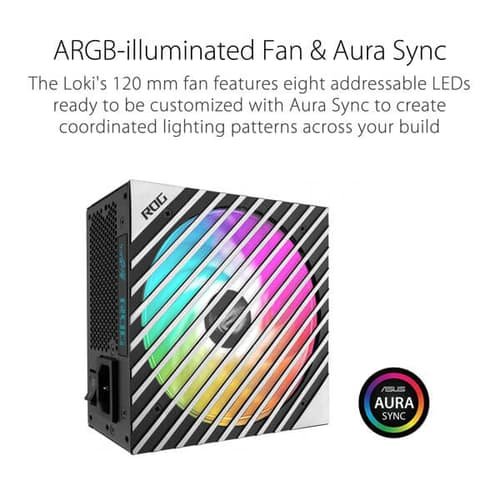

- ARGB-Illuminated Fan & Aura Sync: Features eight addressable LEDs on the fan, synchronized with Aura Sync for customizable lighting effects.
- ROG Heatsinks: Ensures lower temperatures, extended component lifespan, and silent operation.

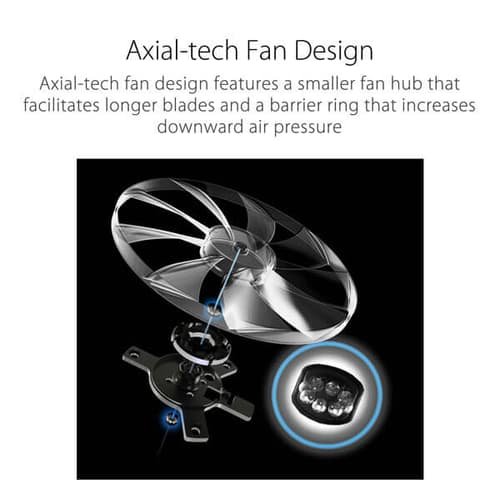

- Axial-tech Fan Design: Incorporates a smaller fan hub and barrier ring for improved airflow and reduced noise.
- Dual Ball Fan Bearings: Provides twice the lifespan compared to sleeve bearing designs.
- 0dB Technology: Fan shuts off completely at PSU loads of 40% or below, ensuring silent operation during low-demand scenarios.
- ATX 3.0 Compatible: Fully compliant with the latest power specification updates, including a 16-pin PCIe cable for PCIe Gen 5.0 graphics cards.
- 10-Year Warranty: Backed by a 10-year worldwide warranty, demonstrating confidence in its reliability and durability.
ROG Loki SFX-L 850W Platinum Specifications
| Specification | Details |
|---|---|
| Model | ROG LOKI SFX-L 850W Platinum |
| Intel Form Factor | SFX-L |
| ATX 3.0 | Yes |
| Dimensions | 125 x 125 x 63.5 mm |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A 20A 83.3A 0.8A 2.5A |
| Combined Load | 110W 110W 1000W 9.6W 12.5W |
| Total Output | 850W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 3 SATA x 6 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (450mm) CPU Cable x 2 (550mm) PCI-E Gen 5 16-pin Cable x 1 (450mm) PCI-E 1-to-1 Cable x 1 (450mm) PCI-E 1-to-2 Cable x 1 (450mm) SATA 1-to-3 Cable x 2 (300+200+100mm) Peripheral 1-to-4 Cable x 1 (300+100+100+100mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 ATX to SFX adapter bracket x 1 |
| Weight | 1.815kg (single PSU) |
| AURA SYNC | ARGB |
| 0dB Fan Button | No |
| Cybenetics Noise Level Certification | A |
| Warranty | 10 Years |
SMPS
| Brand | ASUS |
| Stock Status | IN STOCK |
| Wattage | 850 WATT |
| Certification | 80 PLUS PLATINUM |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 3 |
| SATA Connector | 6 |
| Peripheral (4-Pin) | 4 |
| Series | ROG SERIES |
