Asus Pro business motherboards are tailored to meet the demands of modern IT operations, offering a range of enhanced features designed to streamline system management and ensure reliable performance. Let's delve into the key features:
Intel® LGA 1700 socket: Designed to accommodate 12th Gen Intel CoreTM processors, these motherboards are equipped with the latest CPU socket technology, ensuring compatibility and readiness for advanced computing tasks.
ASUS CSM program: This program ensures a stable supply of motherboards for business use, along with timely notifications regarding end-of-life cycles. Additionally, it provides specialized IT software tailored for business needs, facilitating smoother operations and maintenance.
ASUS Control Center Express: A comprehensive IT monitoring and management software, Control Center Express simplifies enterprise-level system administration. It offers real-time monitoring capabilities and intuitive management tools, enhancing productivity and security across the organization.
Enhanced system security: These motherboards feature a self-recovering BIOS and Trusted Platform Module (TPM) technology, bolstering system security and safeguarding PCs against potential threats and unauthorized access.
Consistent and reliable performance: Built with high-quality components and subjected to rigorous testing, Asus Pro motherboards deliver consistent and reliable performance even in harsh environments, ensuring long-term durability and stability.
Efficient management and customization: With features like an event log and commercial BIOS kit, these motherboards facilitate easy maintenance and customization, allowing IT administrators to efficiently manage system configurations and updates.
Better serviceability: The inclusion of Q-LED diagnostic display and COM debug header simplifies troubleshooting and support processes, enhancing overall serviceability and minimizing downtime.
ASUS Corporate Stable Model: This program offers extended product lifecycle support, providing up to 36 months of support and a 6-month end-of-life notice. It ensures organizations have sufficient lead time to prepare for product transitions and maintain continuity in their IT infrastructure.
PCIe 4.0: Specifically designed for 12th Gen Intel® Core™ processors, these motherboards feature PCIe® 4.0 connectivity, offering wide bandwidth and superfast transmission speeds for storage devices and graphics cards. This enables the creation of feature-rich builds that deliver optimal performance across various computing tasks and applications.
Overall, Asus Pro business motherboards are engineered to meet the demanding requirements of modern IT environments, offering a blend of performance, reliability, and manageability to support the diverse needs of businesses.
| Specifications Details | __parsed_extra |
|---|---|

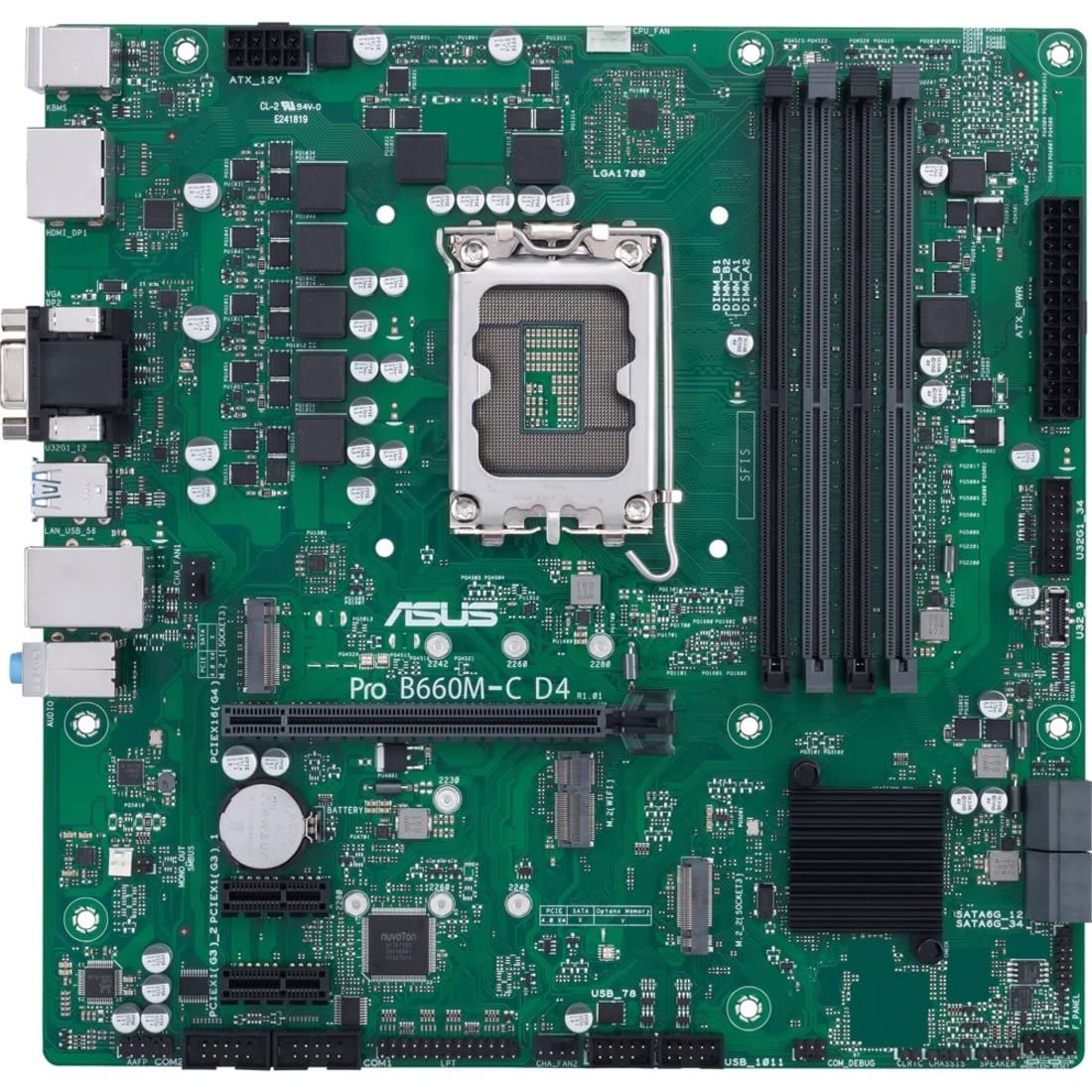

| Model | Pro B660M-C D4-CSM |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B660 Chipset |
| Memory 4 x DIMM | Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), Optimem |
| Graphics | 2 x DisplayPort, 1 x D-Sub port, 1 x HDMI® port |
| Expansion Slots | Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot, Intel® B660 Chipset: 2 x PCIe 3.0 x1 slots |
| Storage Supports | 2 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280, Intel® 12th Gen processors support PCIe 4.0 x4 mode, Intel® B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4), 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 1Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| USB | Rear USB (Total 4 ports): 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports: Jack-detection, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback |
| Back Panel | I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A),2 x USB 2.0 ports (2 x Type-A), 2 x DisplayPort, 1 x HDMI® port, 1 x D-Sub port, 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 keyboard (purple) port, 1 x PS/2 mouse (green) port |
| Internal I/O Connectors Fan and cooling related: | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous: 1 x Clear CMOS header, 1 x Chassis Intrude header, 2 x COM Port headers, 1 x Front Panel Audio header (AAFP), 1 x COM debug header, 1 x LPT header, 1 x Mono-out header(with Amp IC), 1 x M.2 slot (Key E), 1 x SMBUS header, 1 x Speaker header, 1 x 10-1 pin System Panel header |
| Special Features ASUS EZ DIY: Box Headers | Bespoke Motherboard Design & Business Focused Features, Q-LED Core, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, Anti-Moisture, 24/7 Reliability, Overcurrent Protection, TPM IC onboard |
| Software Features | ASUS Exclusive Software, IT Management software supported: ASUS Control Center Express( |
